Projects

Our work, photographed on the job.

A selection of recent projects across water, agriculture, food processing, robotics and switchboard manufacture. Every photo is from the actual job, and client names are kept confidential.

CIP system overview screen designed by AMC, showing the CIP tank, pumps, valves, steam and chemical dosing during a caustic wash

CIP setpoints screen with alarm, timer, process and PID setpoints

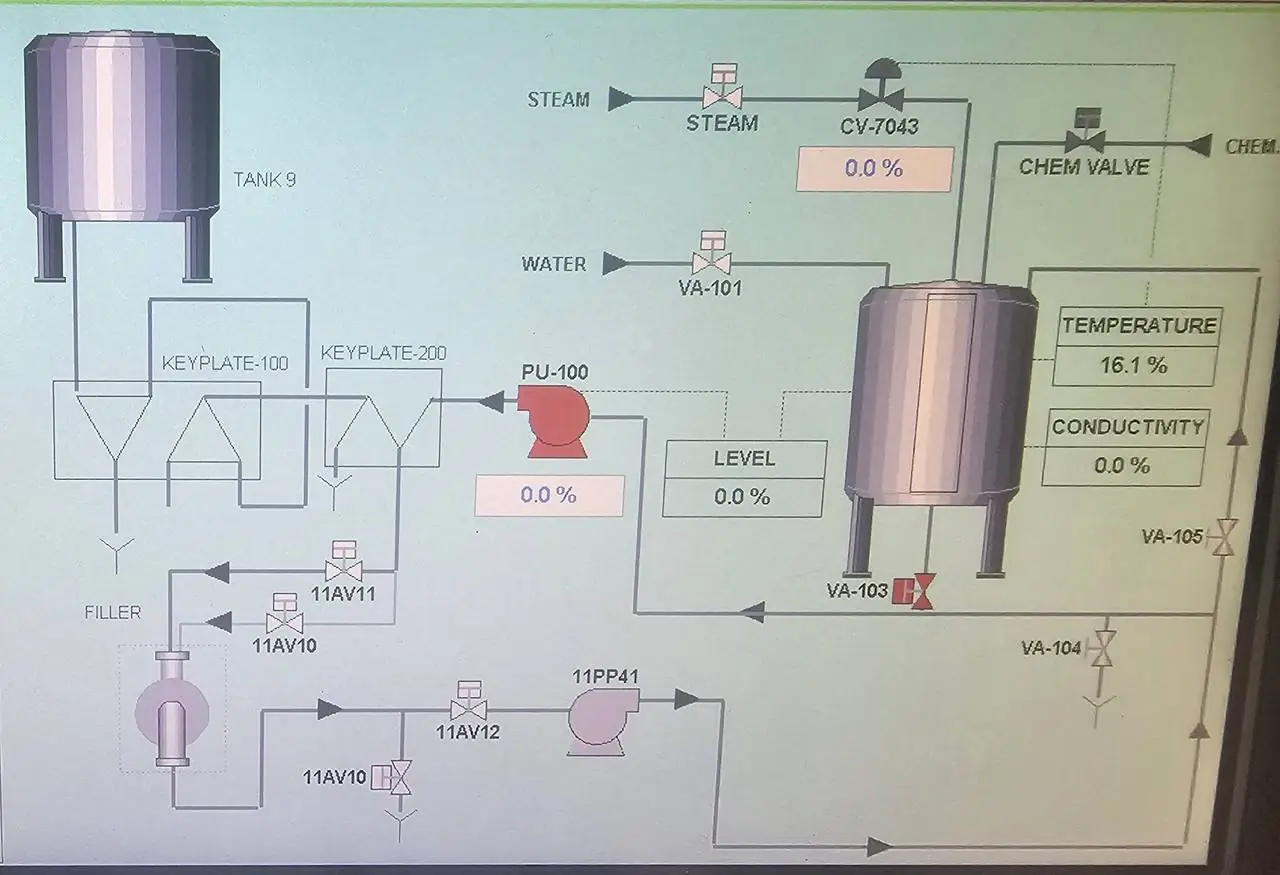

The CIP overview screen running on the plant HMI

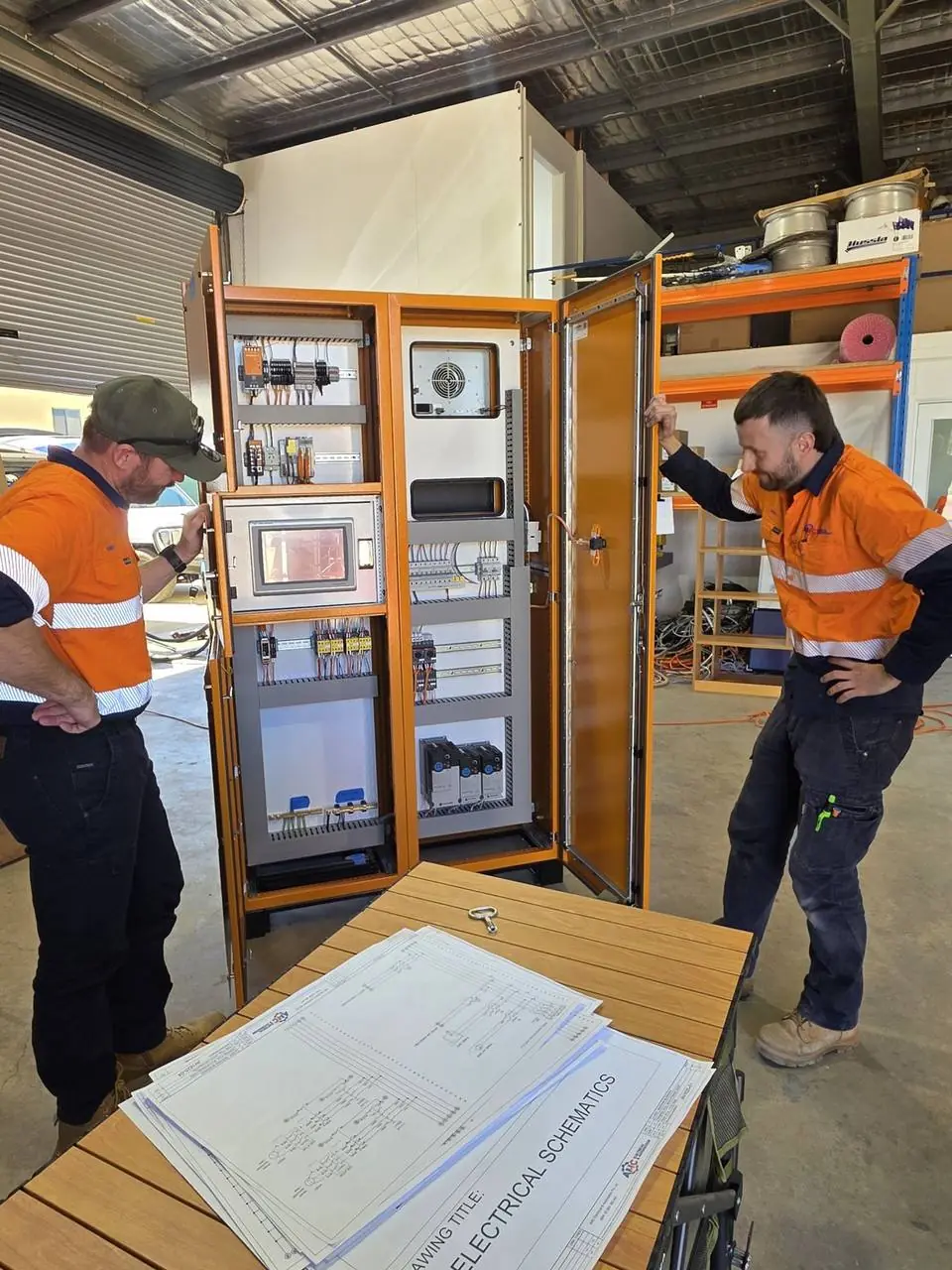

AMC team reviewing a control panel with HMI before delivery

Food & beverage · Juice

Automated CIP system & filler control system

ClientJuice processing plant

SectorFood & beverage

ScopeDesign · build · install · commission

The brief: Replace manual cleaning with a fully automated clean-in-place (CIP) system for a filling line, and deliver a complete new control system for the filler itself, with the safety and hygiene a juice plant demands.
What we did: AMC designed, built, installed and commissioned a fully automated CIP system, and designed, built and installed a full control system for the filler. That covered the control panels, PLC and HMI software written to our verification standard, a machine risk assessment, and safety system validation and sign-off.

Outcomes

Fully automated, repeatable CIP cycles
New filler control system, PLC and HMI
Risk assessed and safety validated
Complete documentation and sign-off package

CIPFiller controlsPLC · HMISafety validation

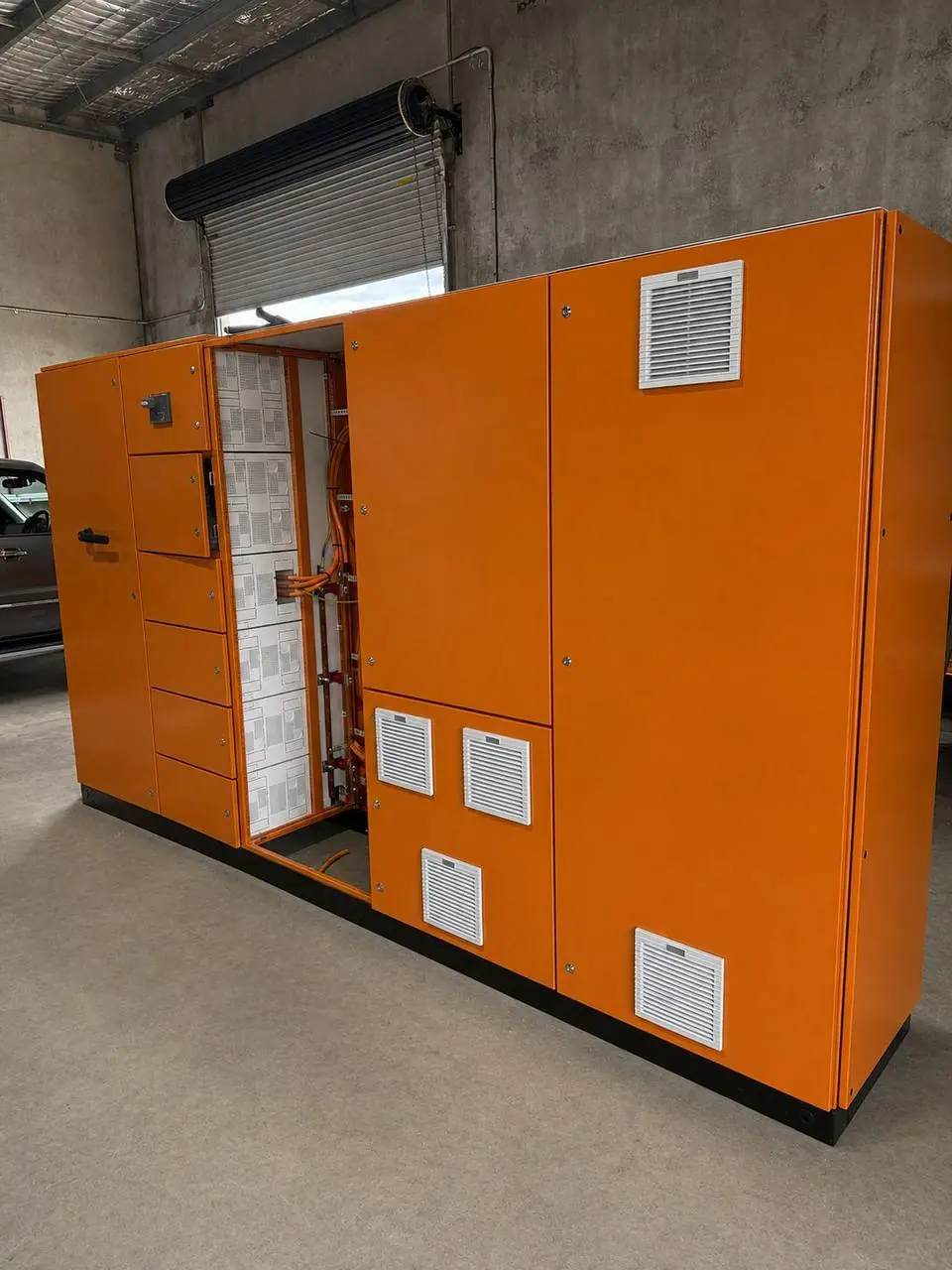

Completed orange 1000 A distribution board

The board strapped on the trailer for delivery

Fabrication & switchboard design

1000 A main distribution board

Rating1000 A

SectorBeverage processing

ScopeDesign · build · test

The brief: Supply a new 1000 A distribution board for a growing beverage processing plant, built to carry the new process, refrigeration and site services loads.

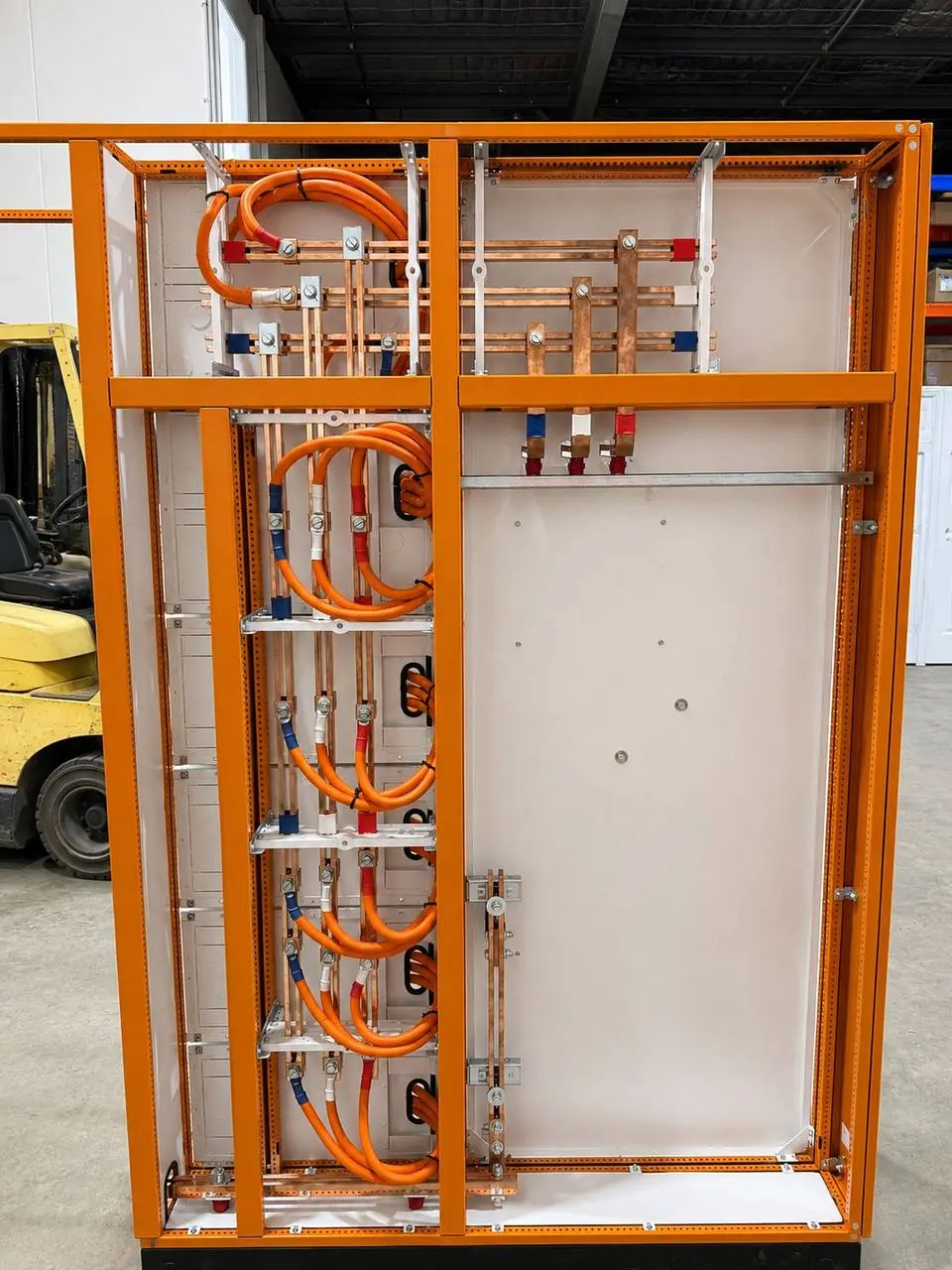

What we did: AMC designed and built the 1000 A board in our Griffith workshop, including the busbar system, main and outgoing protection and control section, then tested it and delivered it to site ready for installation.

Outcomes

1000 A busbar system built in-house
Segregated, maintainable layout
Tested before it left the workshop
Delivered by our own crew

1000 ABusbarIn-house build

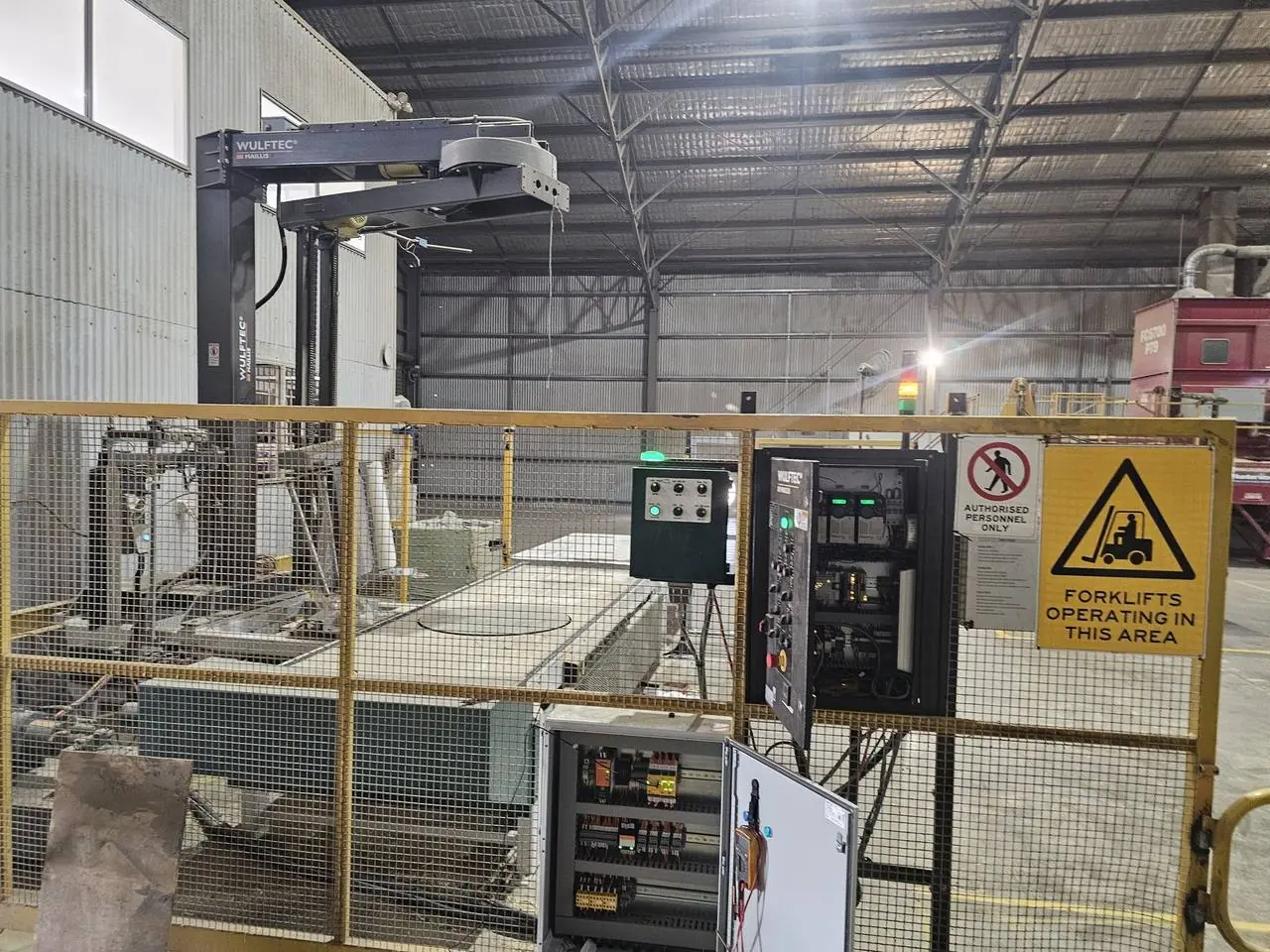

Pallet wrapper with new guarding, safety panel and stack light during commissioning

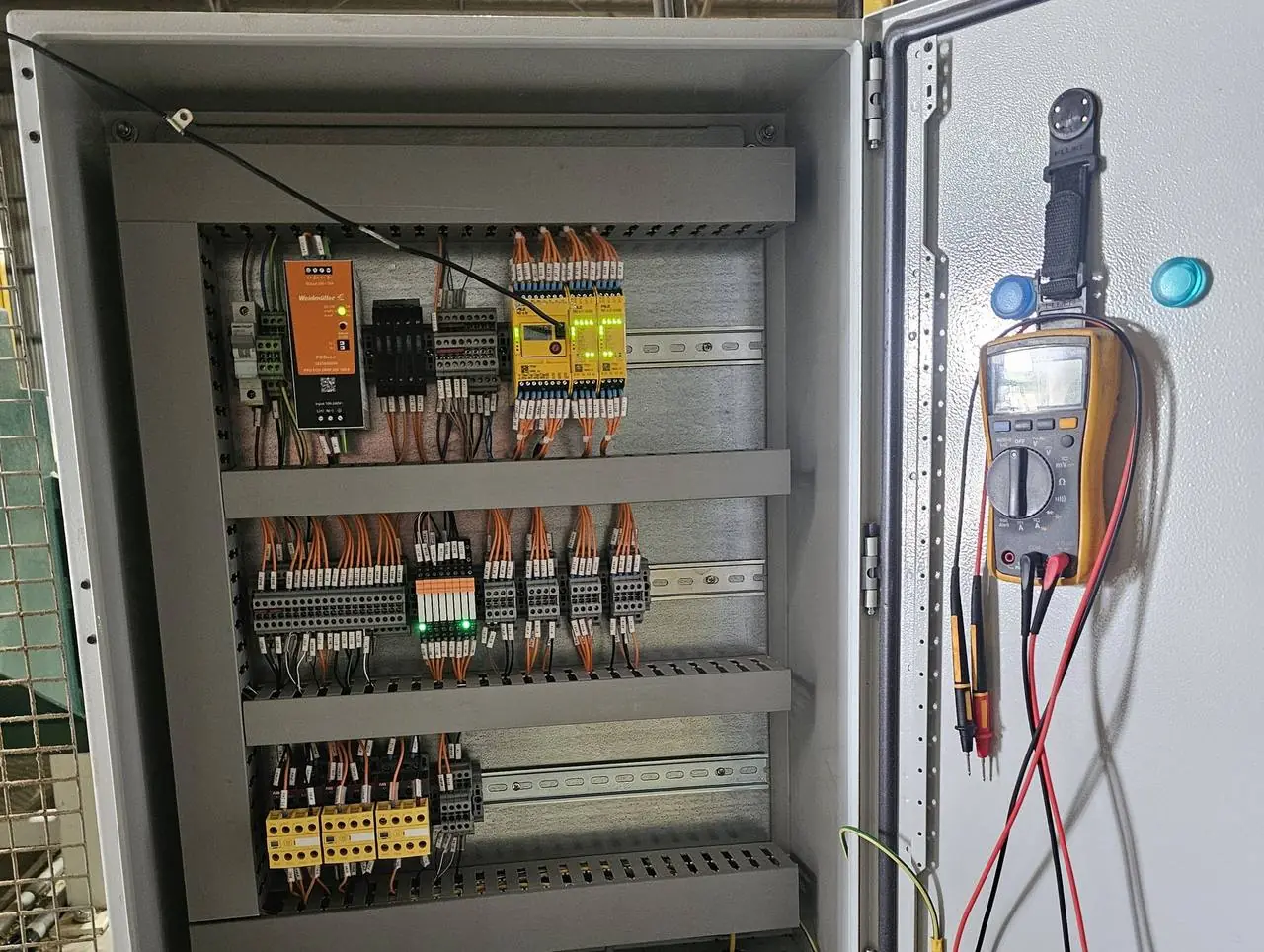

New safety control panel with Pilz safety controller and monitored contactors, live during testing

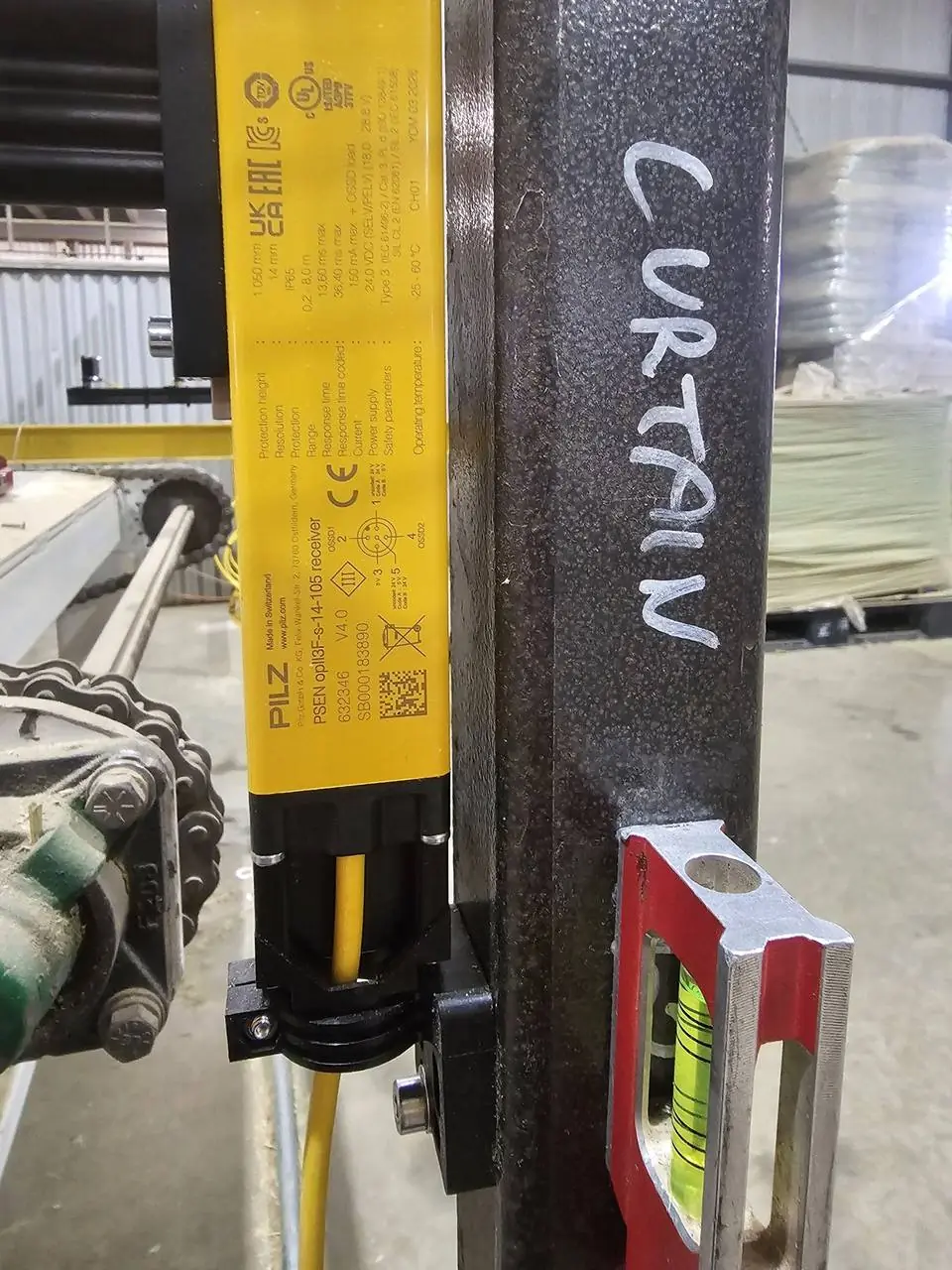

Pilz light curtain receiver installed on the machine frame

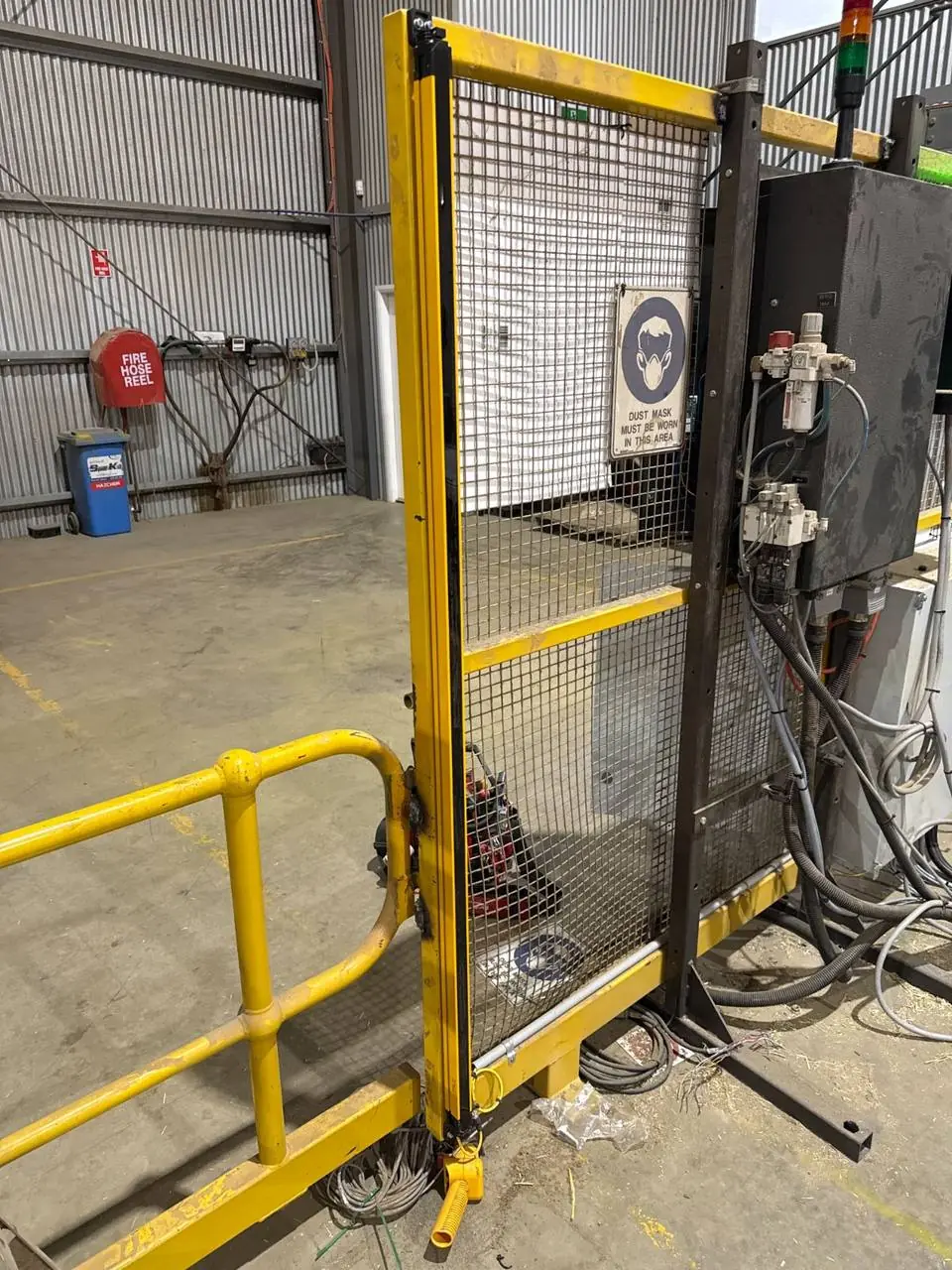

Light curtain at the guarded access point

Machine safety · AS 4024

Pallet wrapper safety system

LocationMurrami NSW

SectorHay & fodder export

ScopeAssess · design · program · validate

The brief: An automated pallet wrapping machine with rotating and hazardous parts and no proper safeguarding.
What we did: AMC carried out a full risk assessment to AS 4024, then designed, programmed, integrated and tested a complete safety system. We added a new safety control panel with a Pilz safety controller, Pilz light curtains with muting, interlocked access doors and e-stops. The hydraulic motor and main drives were brought under safety control with STO and monitored contactors. We finished with stopping-distance validation and full electrical schematics.

Outcomes

Fully risk assessed to AS 4024
Pilz safety controller and light curtains with muting
STO and monitored contactors on drives
Stopping-distance validated and documented

AS 4024PilzLight curtainsSTO

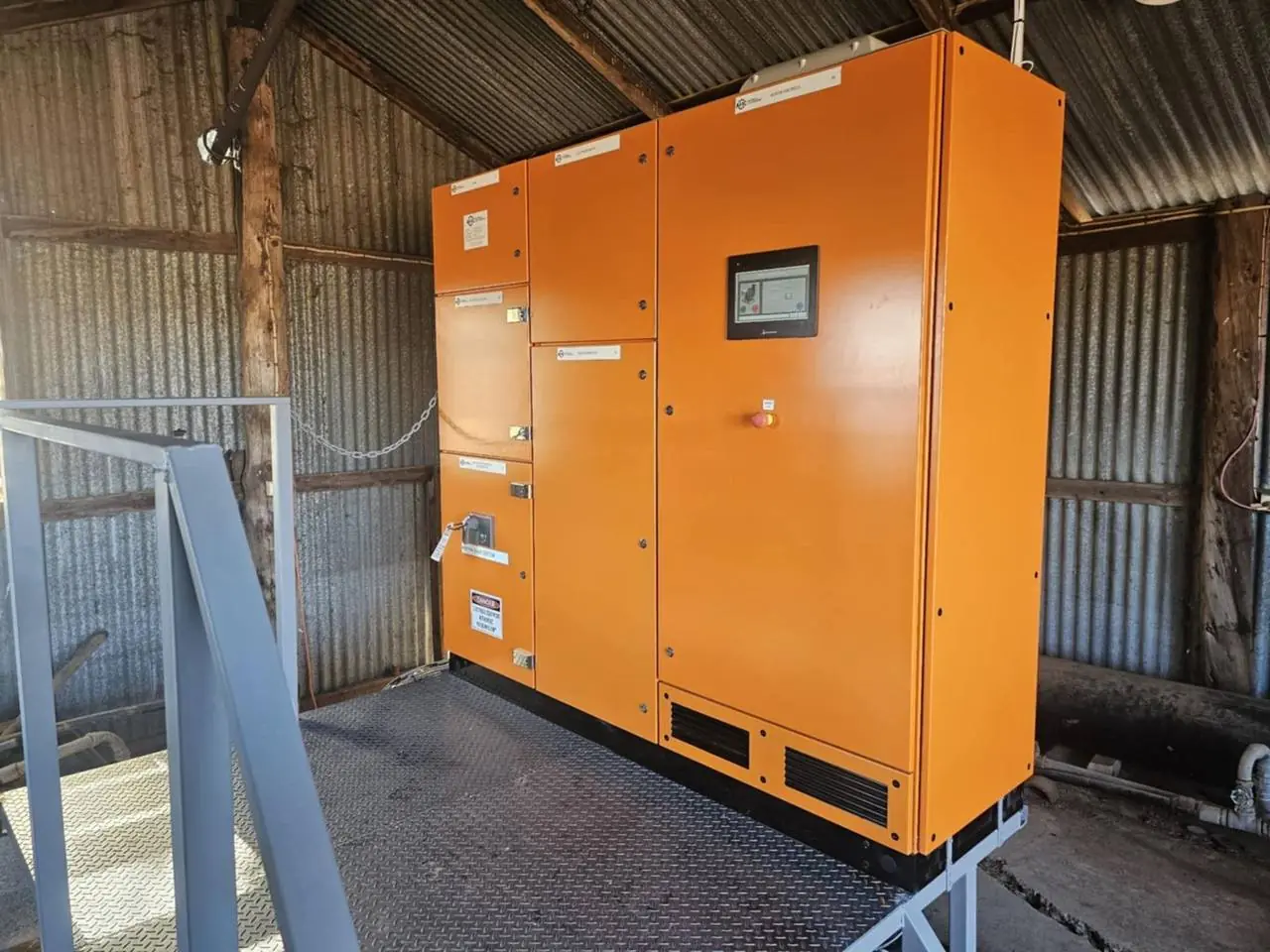

Automated river pump control board installed in a pump shed

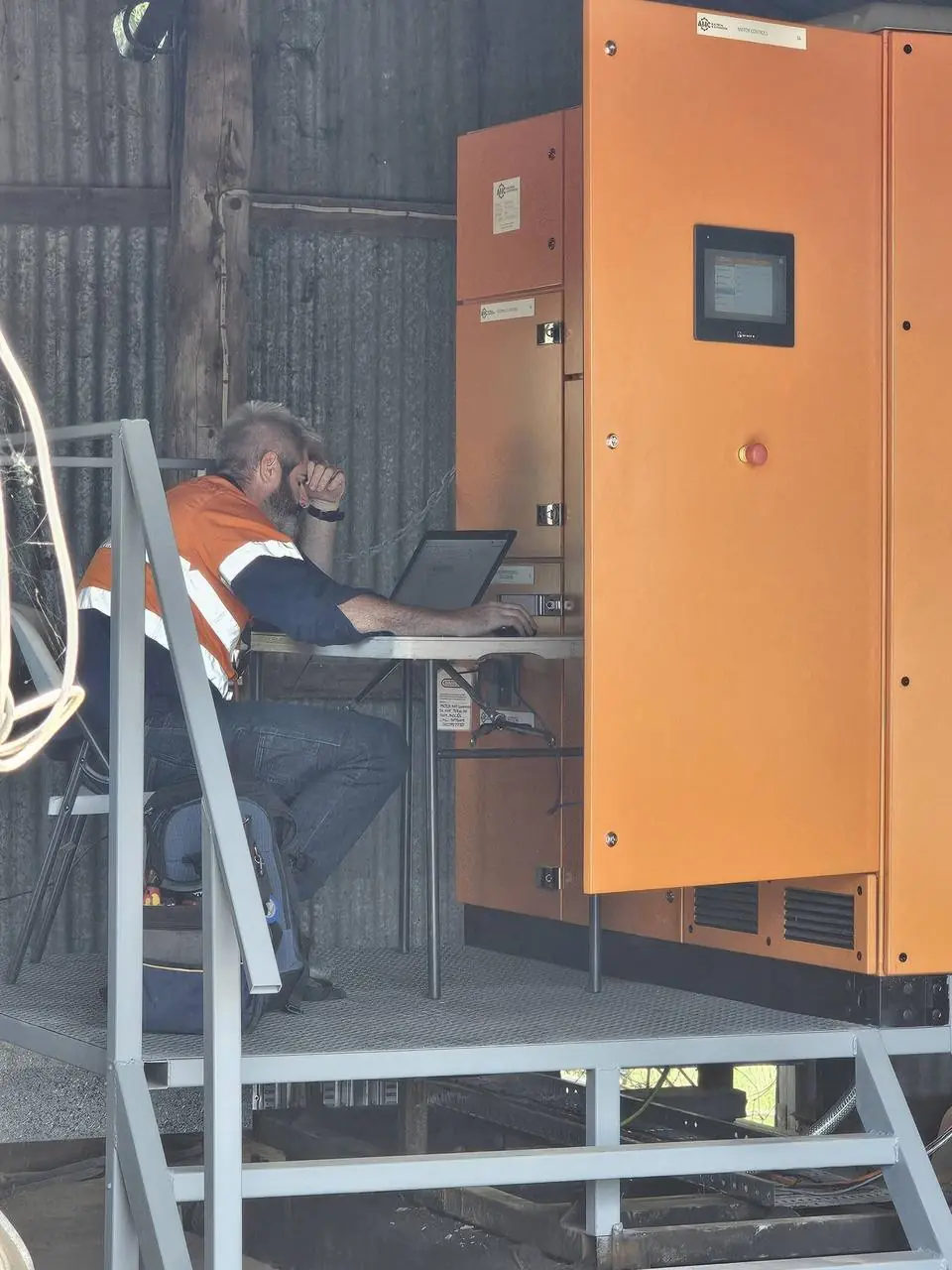

Commissioning the pump control system on site

Water infrastructure & process automation

Automated river pump

LocationLake Cargelligo NSW

SectorWater / irrigation

ScopeDesign · build · commission

The brief: Replace a manually run river pump with a system that controls water flow precisely, cuts wasted water and energy, and can be monitored and run remotely.

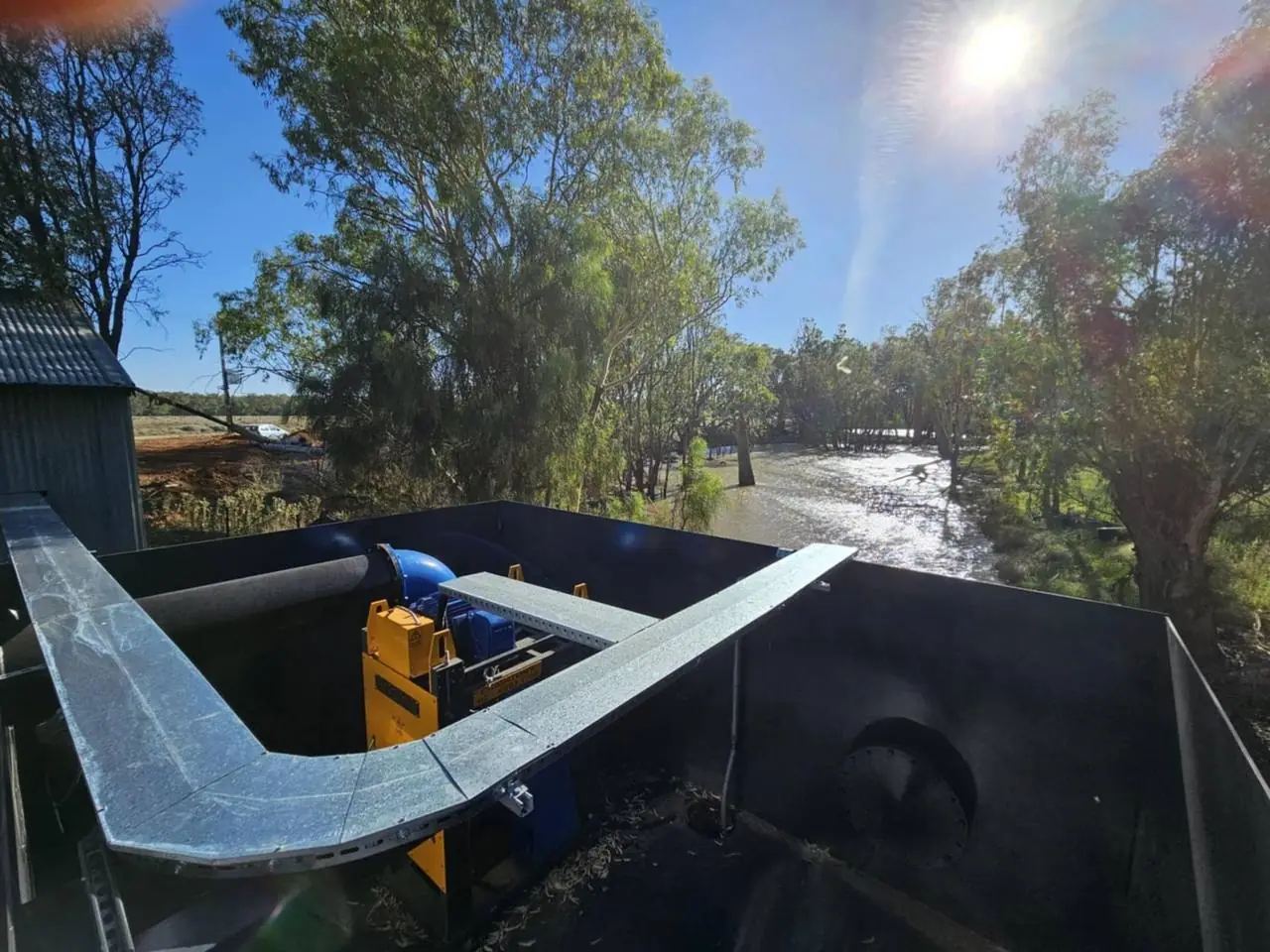

What we did: AMC designed and built the pump control board, installed the site electrical and pipework controls, and commissioned a fully automated system with remote control.

Outcomes

Up to 30% reduction in water waste
Energy-efficient operation
Smart automation and remote control
Low-maintenance design

AutomationVSDRemote monitoring

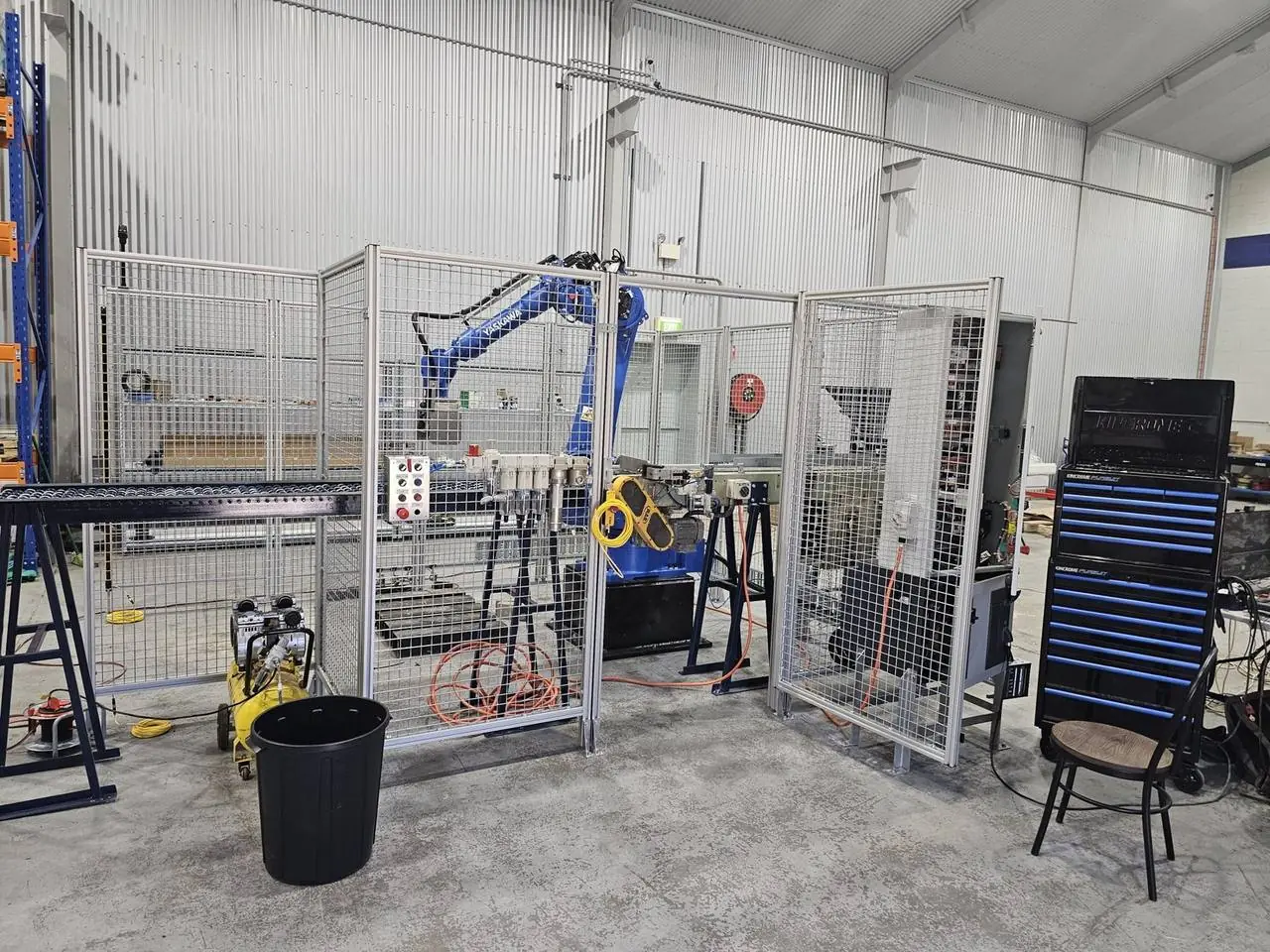

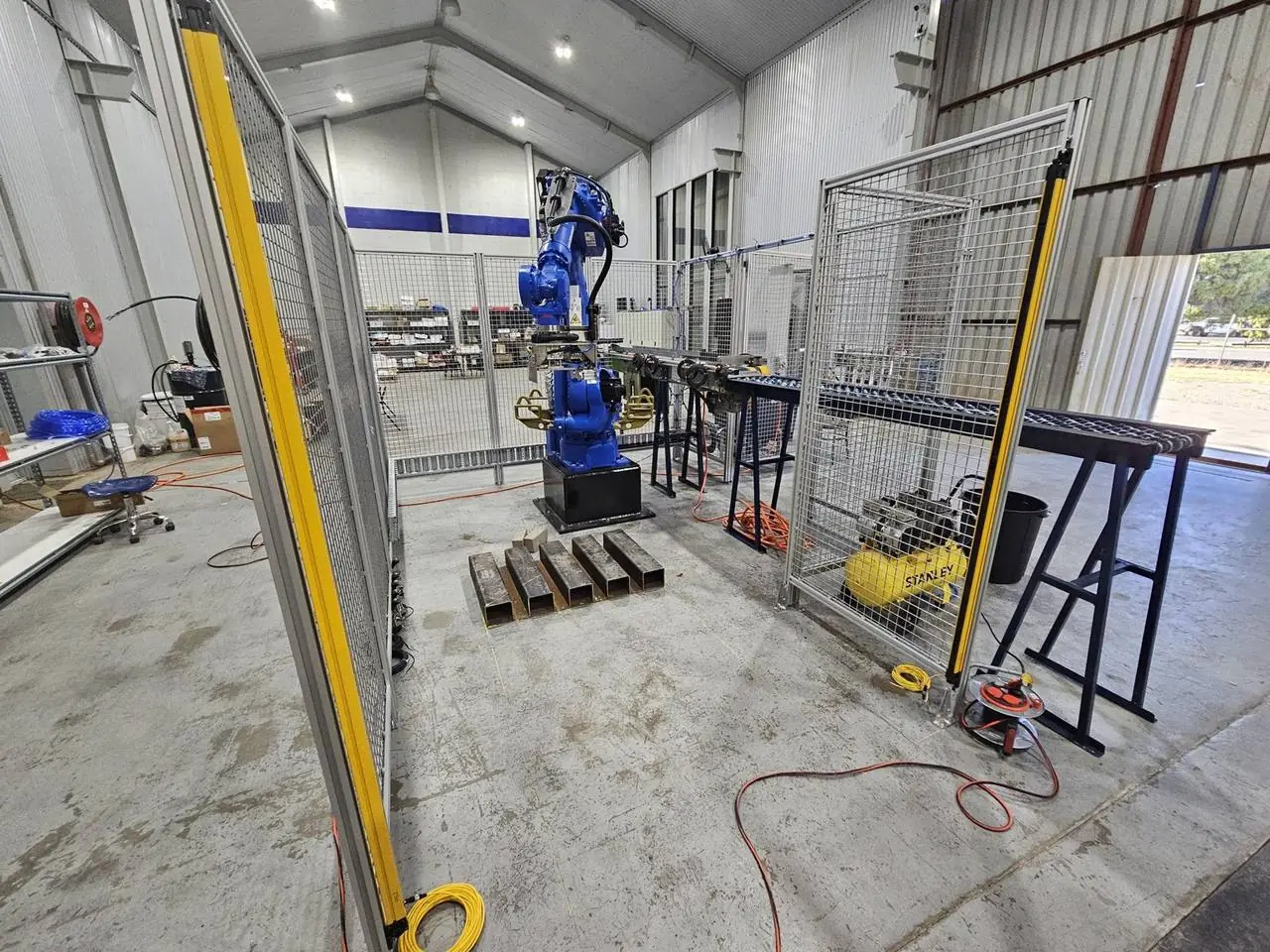

Robotic brick palletiser cell with guarding

Robotics & advanced automation

Robotic brick palletiser

LocationTaree NSW

SectorManufacturing

ScopeRobotics · safety · controls

The brief: Speed up brick handling and packaging, reduce manual labour and make the work safer for operators.
What we did: AMC designed and installed a robotic palletising cell with full machine-safety guarding integrated into the cell design, integrated with the existing line.

Outcomes

Up to 50% faster production
Improved operator safety
Consistent, precise stacking
Scalable automation platform

RoboticsAS 4024Integration

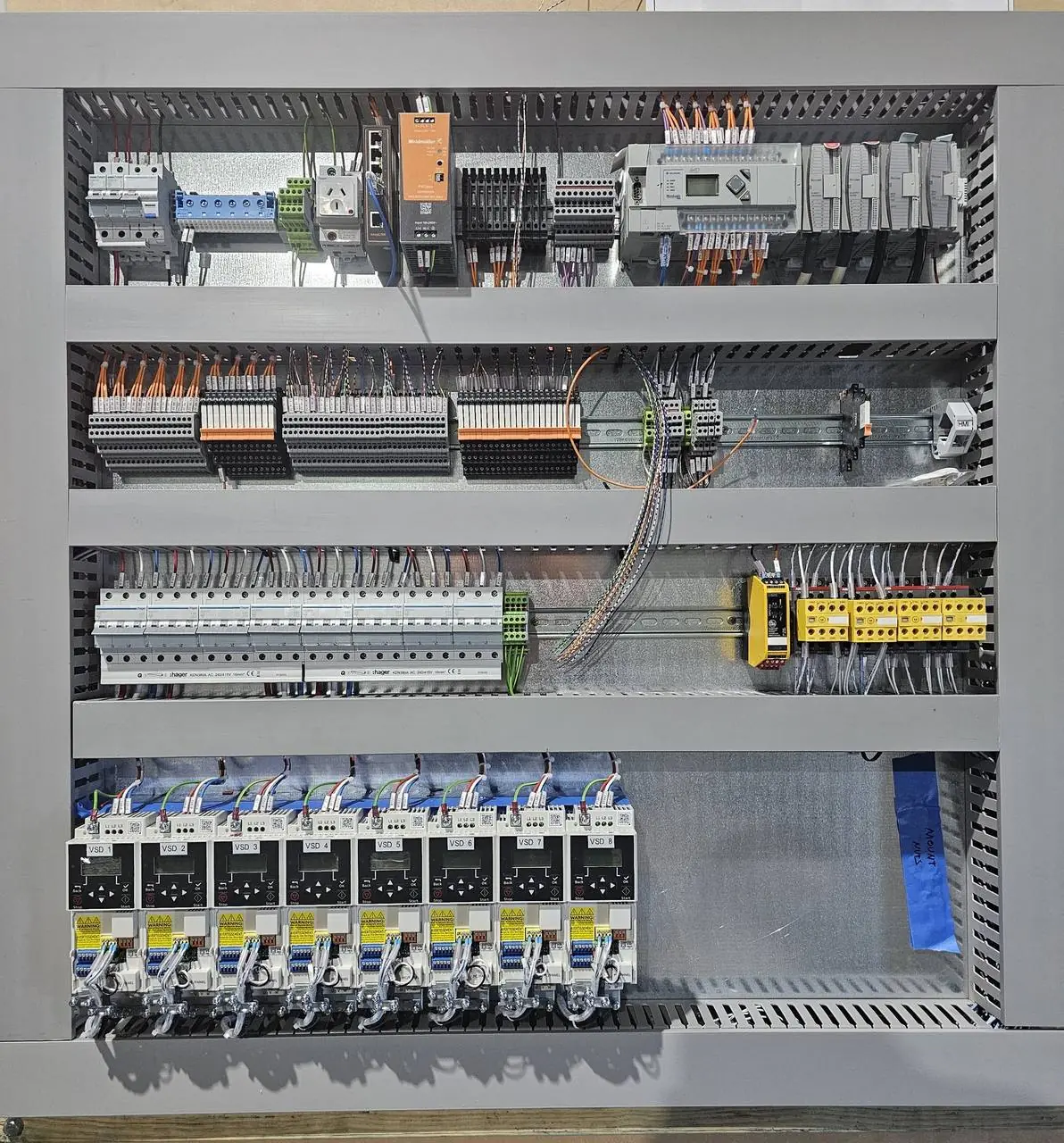

Finished conveyor control panel with duct lids fitted

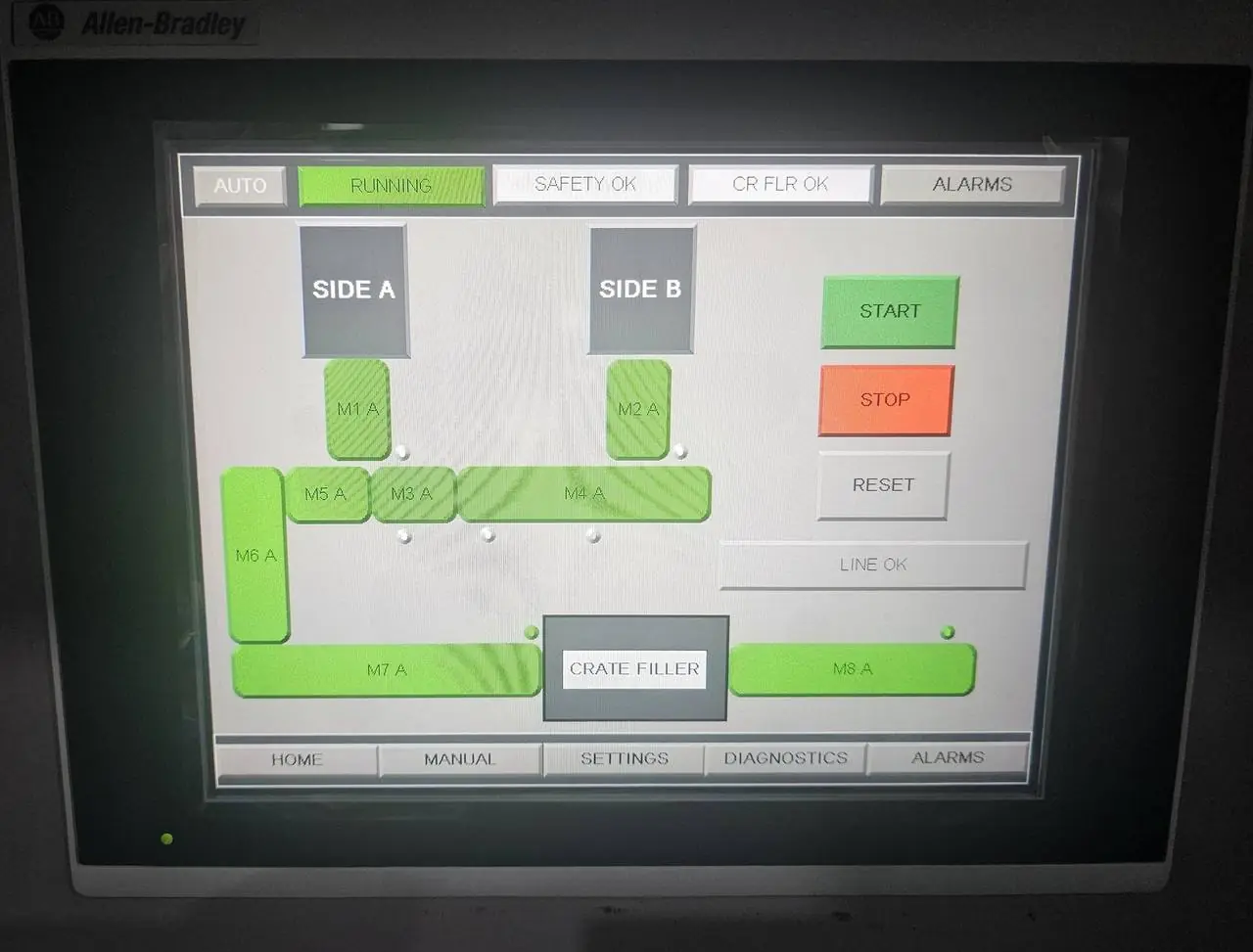

Operator touchscreen showing the conveyor line running in auto

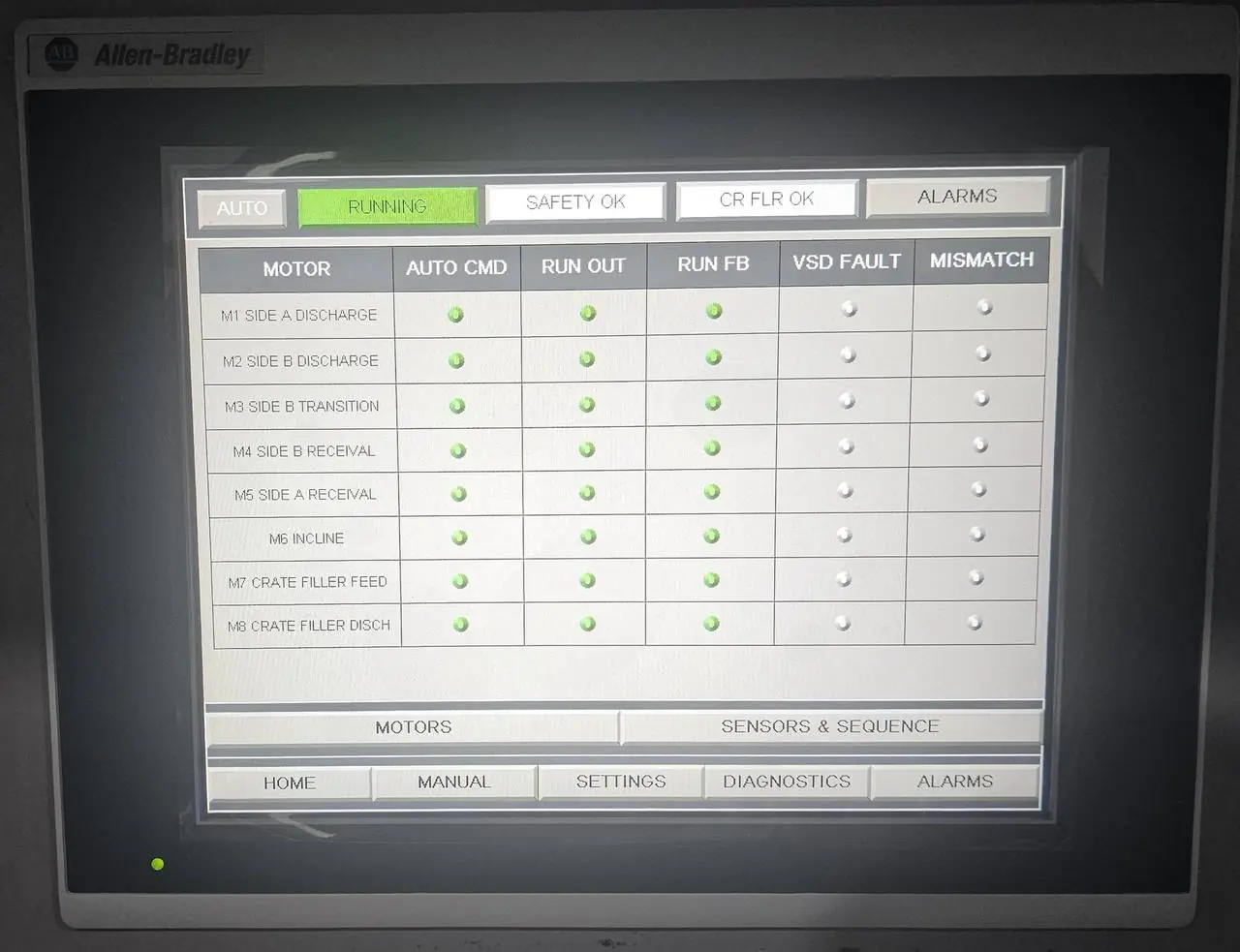

Operator touchscreen showing motor run status for all eight conveyors

Food & beverage · Panel build

Citrus packing conveyor control system

LocationRiverina NSW

SectorFood & beverage

ScopeDesign · build · program · commission

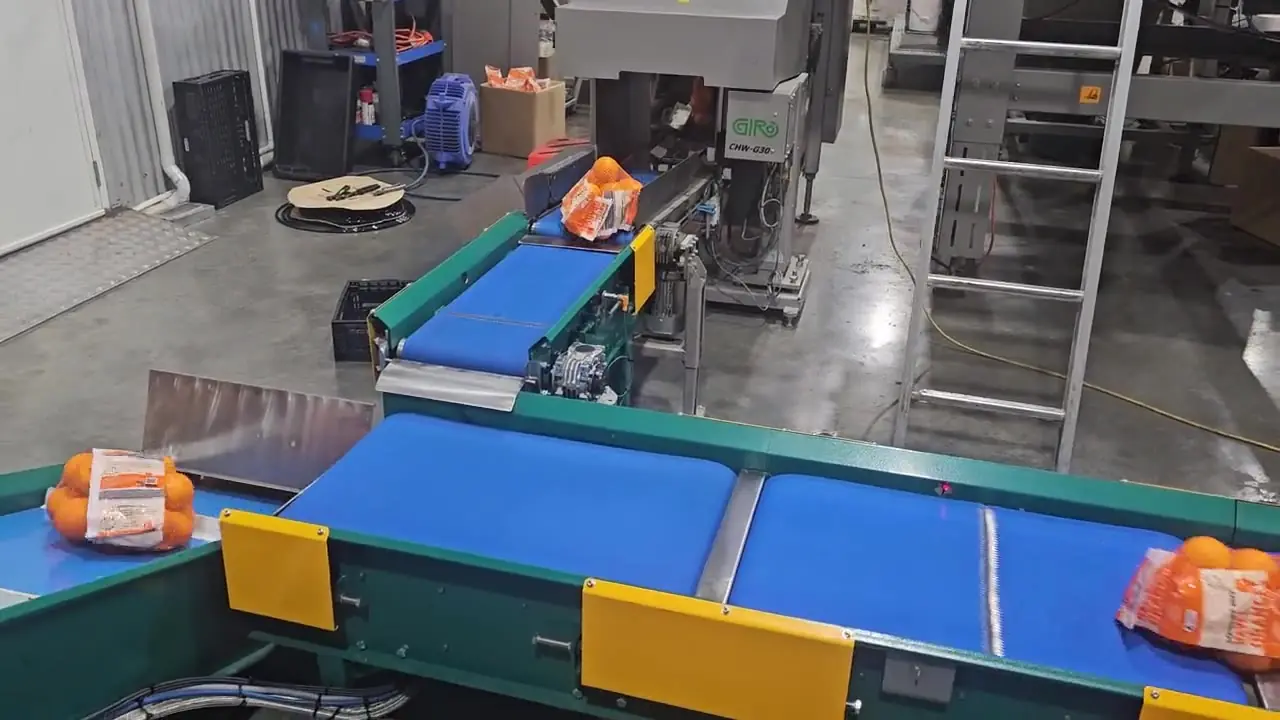

The brief: Control and safeguard a multi-section conveyor system for a citrus packing operation, merging product from two packing lines into a steady, evenly spaced flow for the downstream packaging equipment.
What we did: AMC designed and built the control panel in our Griffith workshop, including the PLC, a bank of safety relays for e-stops and guarding, and eight variable speed drives, then programmed and tested it before delivery. The control system manages the timing and traffic across every conveyor section: it meters product in from both sides, controls merging and accumulation, and holds or releases bags so the crate filler is fed a steady, evenly spaced flow without gaps, jams or pile-ups. On site we commissioned the full line, with an operator touchscreen showing every conveyor, sensor, sequence and alarm in plain English.

Outcomes

Smooth, gap-free feed to the downstream packaging equipment
Eight independently controlled conveyor drives
Safety circuits designed to AS 4024
Operator HMI with line overview, motor status and alarms
Tested in our workshop, commissioned on site

PLCHMI8 × VSDSafety relays

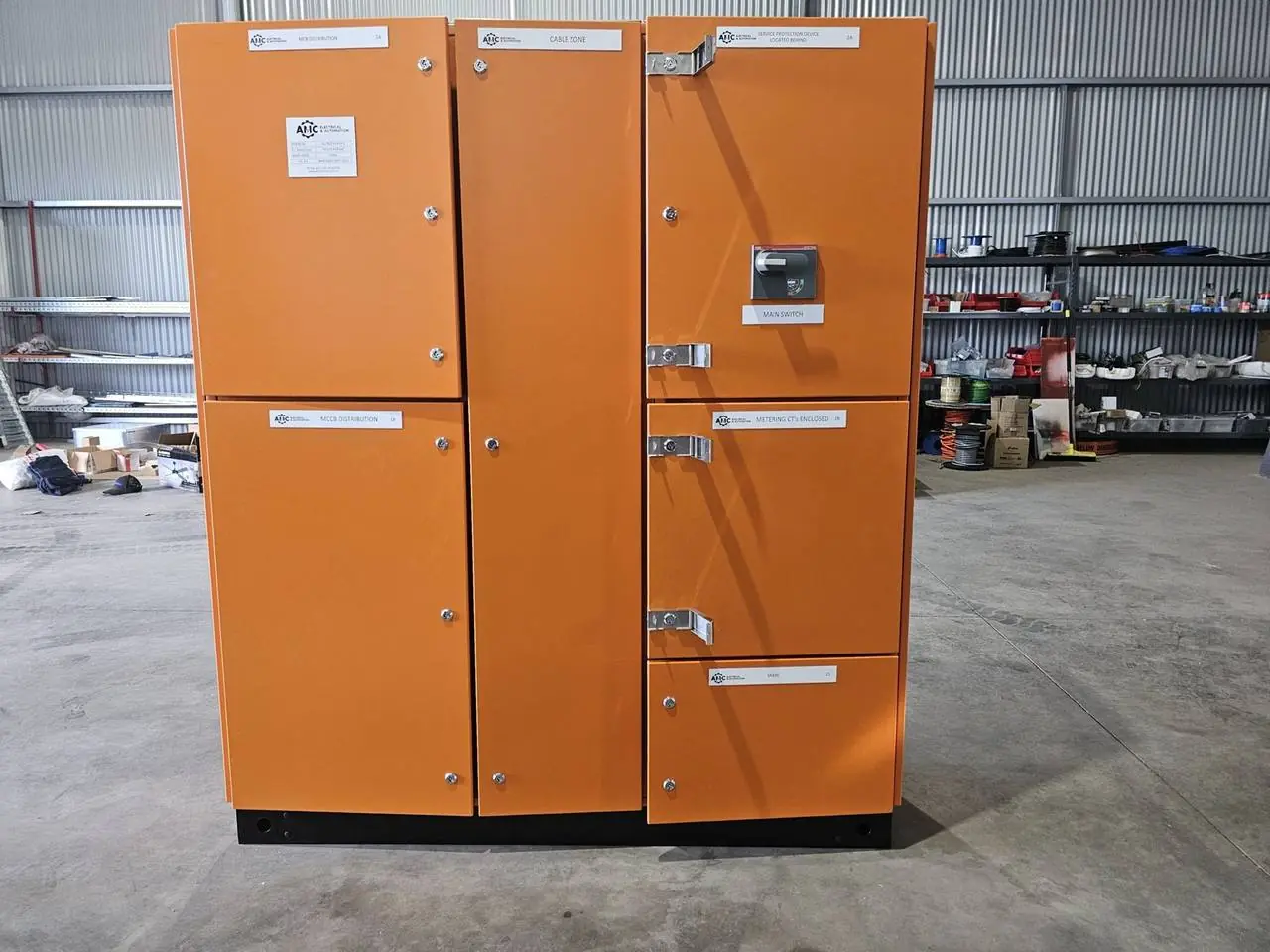

Completed orange main switchboard in the workshop

The AMC team with a switchboard in the workshop

Fabrication & switchboard design

Custom main switchboard

LocationGriffith NSW

SectorFruit packing

ScopeDesign · build · install

The brief: Give a busy fruit-packing facility the capacity and reliability to keep up with growth.
What we did: AMC engineered and built a custom main switchboard in-house in Griffith, with safety, efficiency and reliability designed in from the start and smart monitoring built in.

Outcomes

Future-ready, scalable design
Enhanced safety systems
Reliable, compliant operation
Smart monitoring

Main switchboardIn-house buildAS/NZS 3000

Smart connectivity & security

Farm-wide connectivity & smart security

LocationLandervale

SectorAgriculture

ScopeNetwork · CCTV · power

The brief: Reliable coverage and security across an entire rural property, with remote access from anywhere.

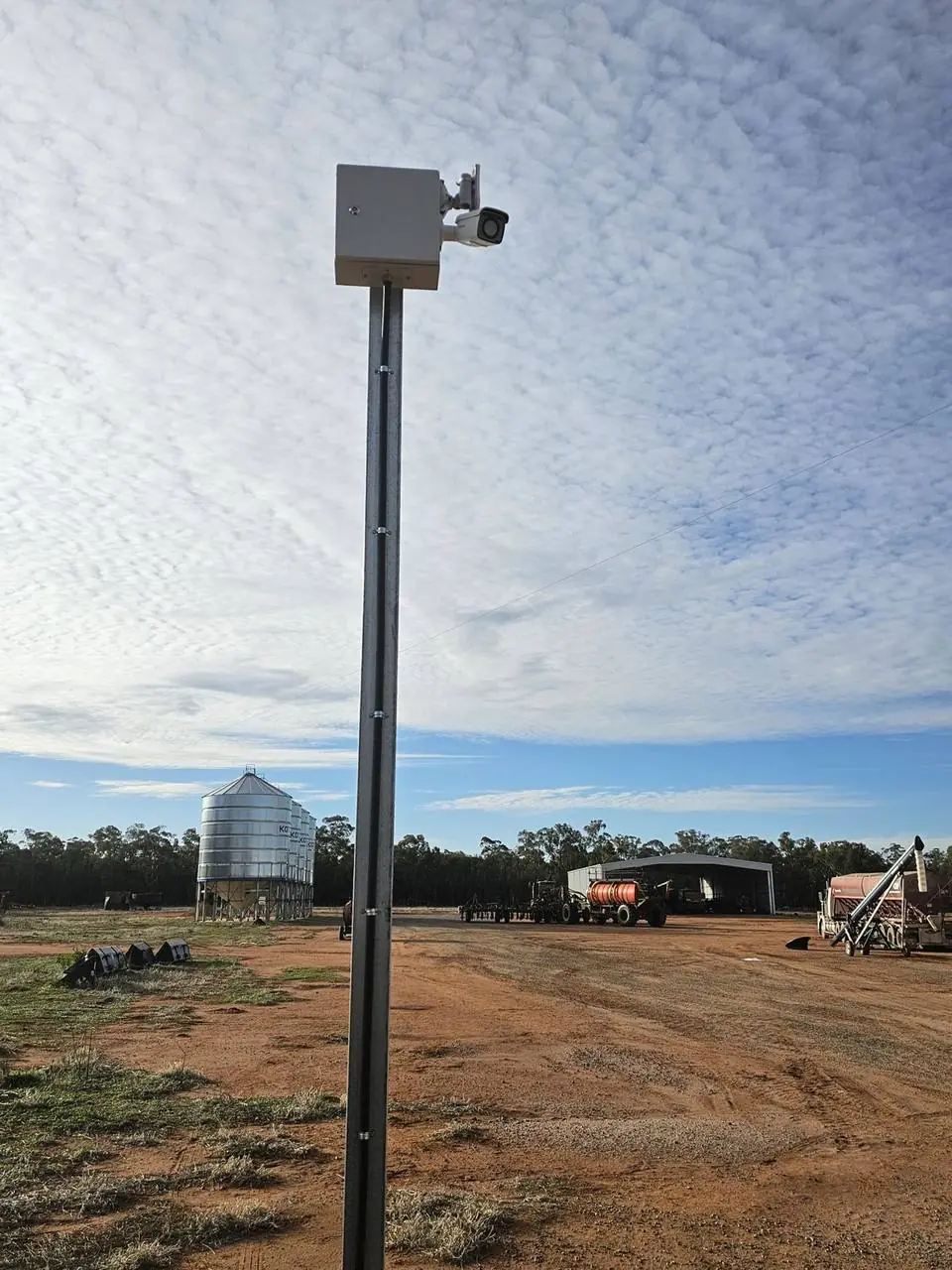

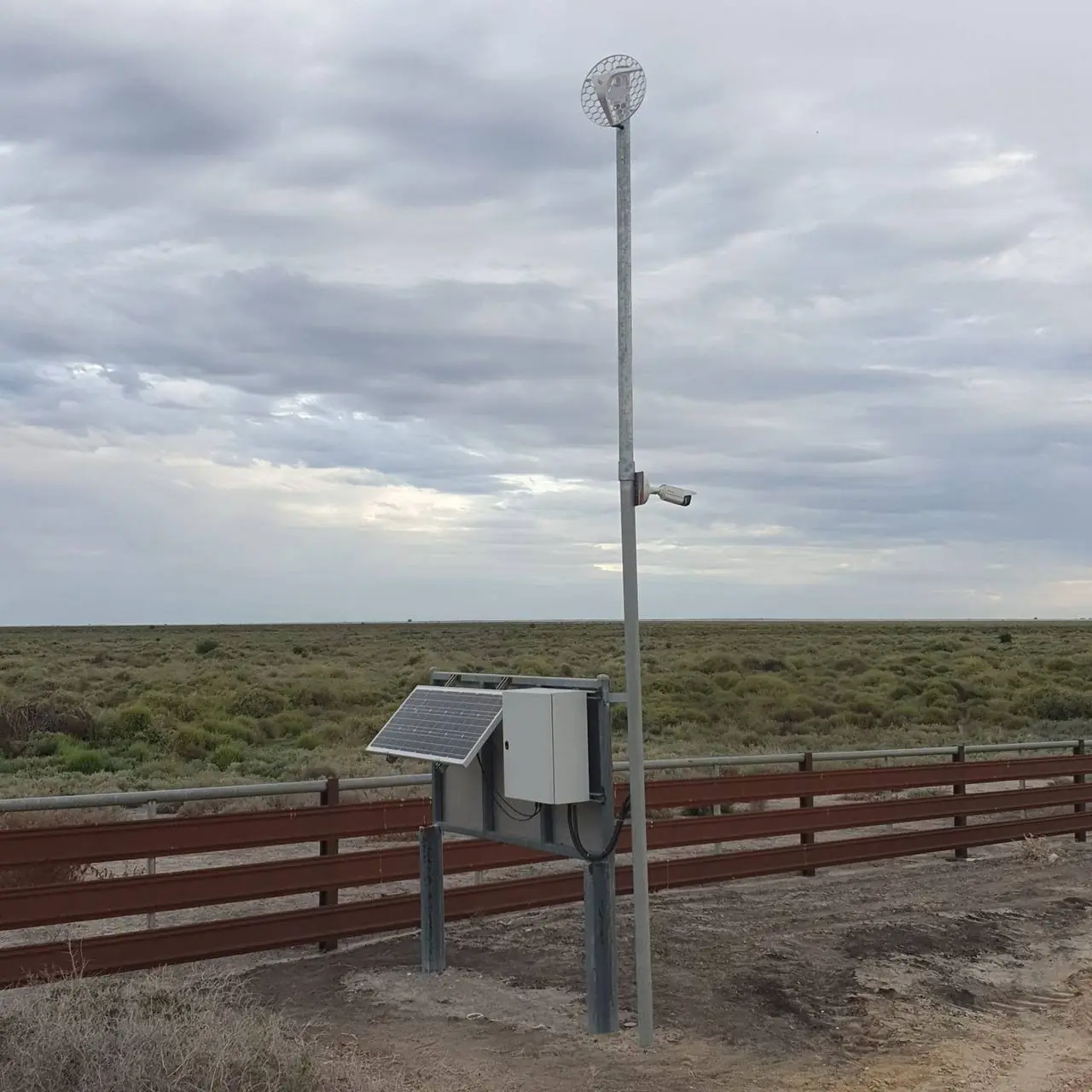

What we did: AMC designed and installed a farm-wide Wi-Fi mesh and long-range HD CCTV system, including solar-powered camera poles where there's no mains power.

Outcomes

Reliable long-range wireless coverage
HD CCTV with night vision
Remote monitoring and alerts
Weatherproof, easily expandable system

Wi-Fi meshCCTVSolar

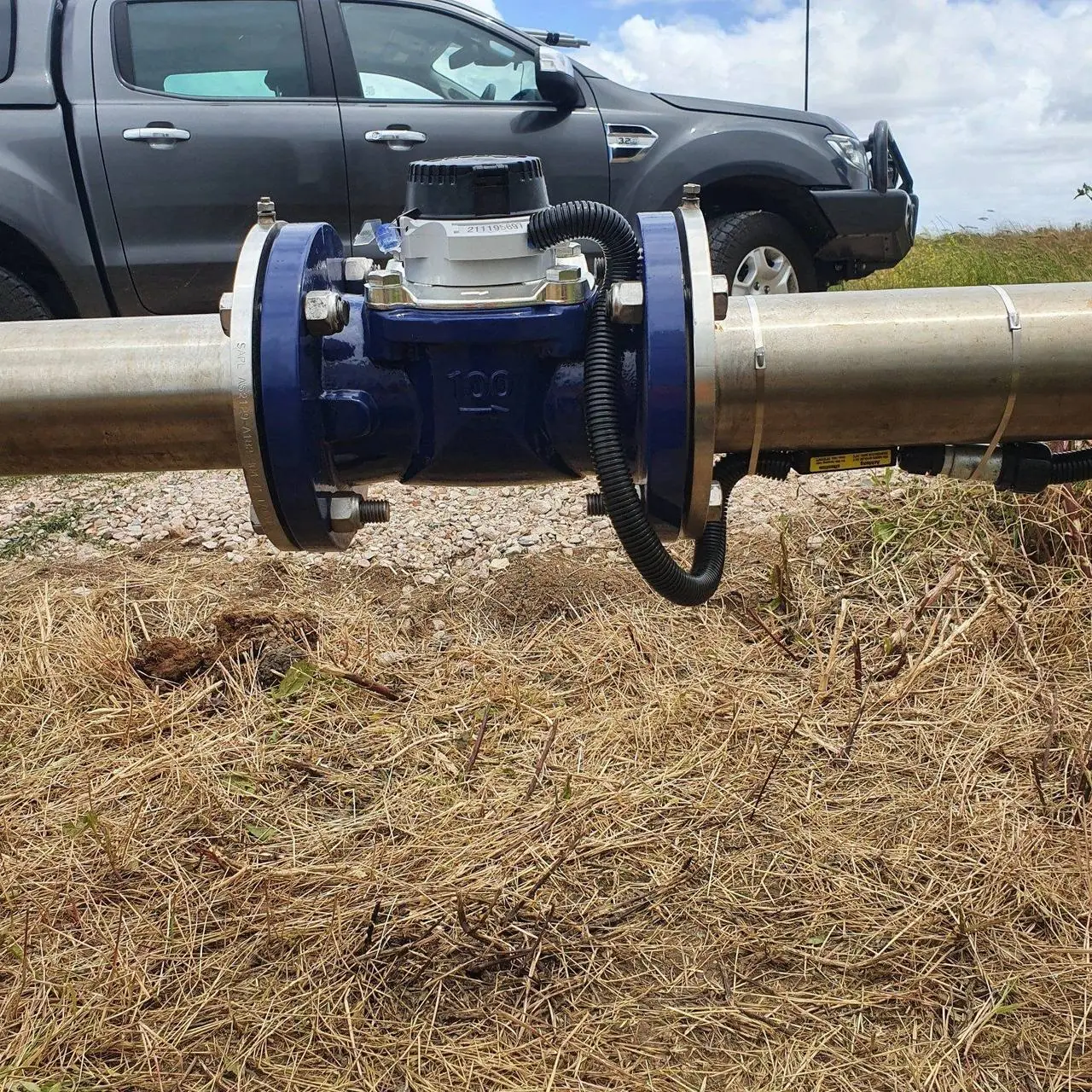

Non-urban water meter installed on an irrigation pipe

Agricultural infrastructure

Non-urban water metering

LocationRegional NSW

SectorIrrigation

ScopeSupply · install · validate

The brief: Accurate, real-time water-use data and compliance with NSW non-urban metering rules, without replacing existing infrastructure.
What we did: AMC installs and upgrades agricultural water meters and data loggers, giving growers clear digital usage data and an affordable path to compliance.

Outcomes

Accurate water-use monitoring
Early leak and loss detection
Better irrigation efficiency
Cost-effective compliance upgrade

MeteringTelemetryNSW compliance

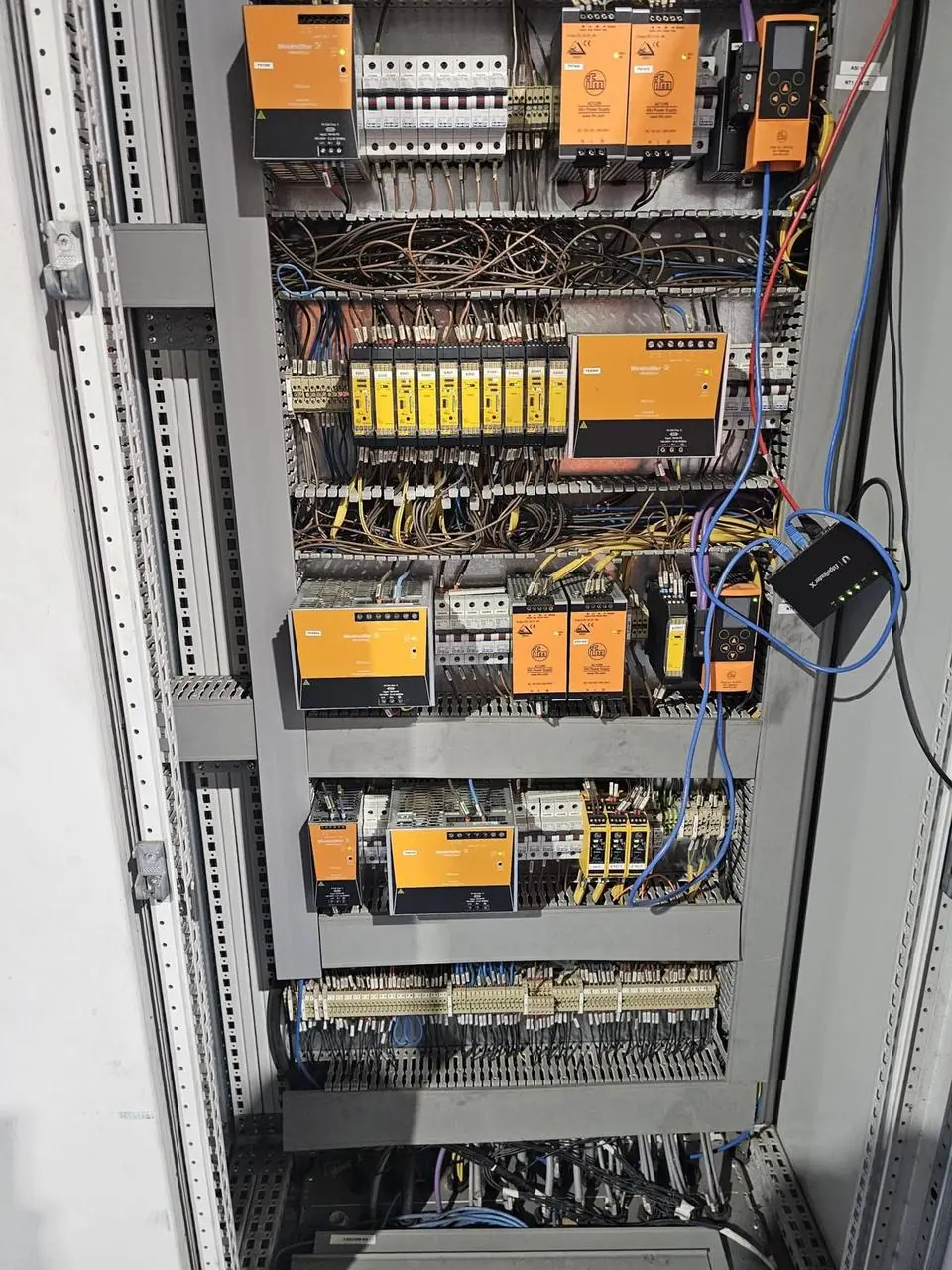

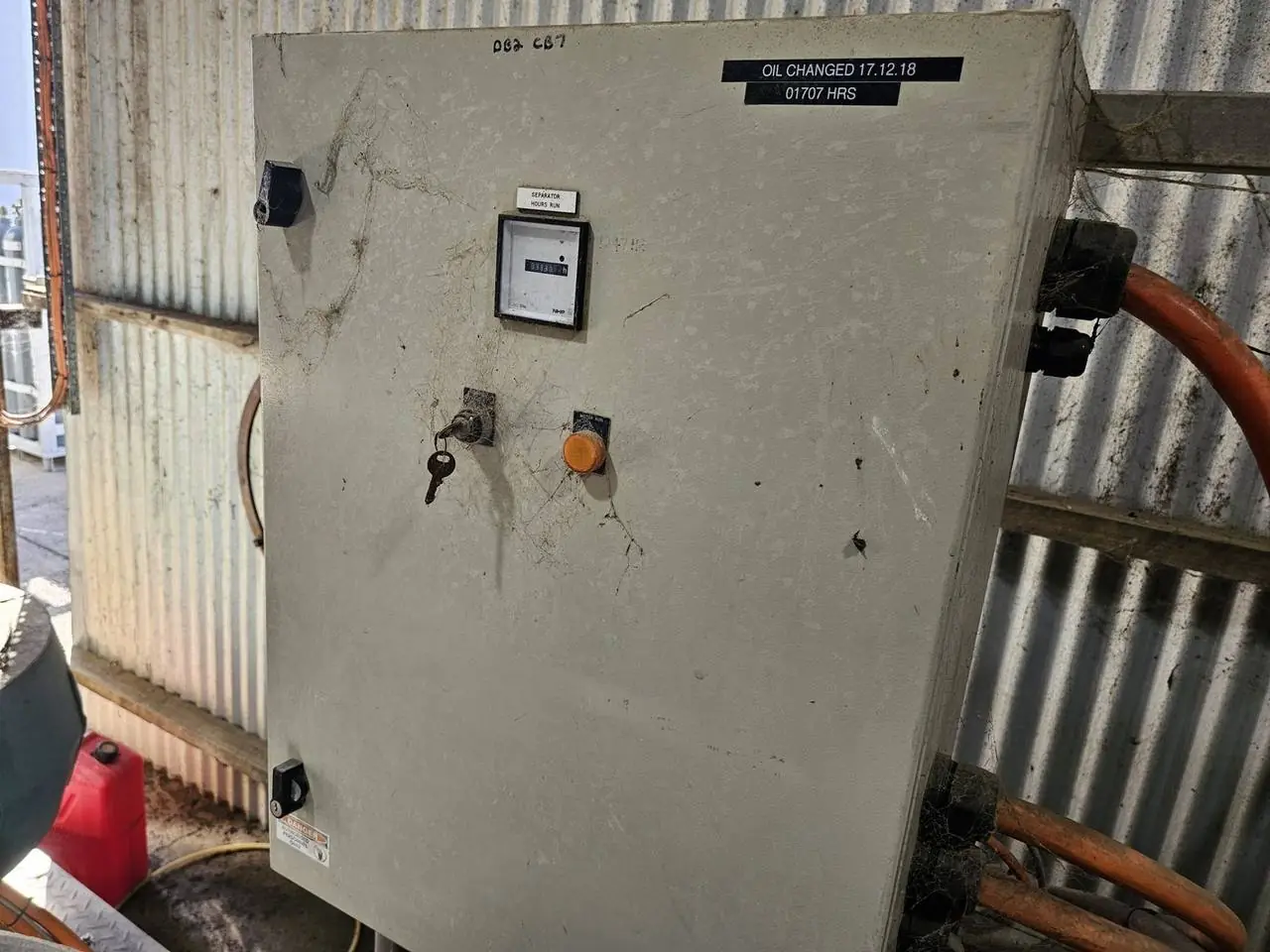

Original legacy control panel before upgrade

Plant upgrades & modernisation

Legacy control system upgrades

LocationRegional NSW

SectorFood & industrial

ScopeMigrate · rewire · commission

The brief: Keep older machines productive when their control systems are obsolete, unsupported or unreliable, without paying for full replacement.
What we did: AMC replaces outdated controls with modern PLCs, drives and operator screens, often in staged cutovers so the plant keeps running during the upgrade.

Outcomes

Modern performance without full replacement
Improved safety and reliability
Fewer breakdowns and less downtime
Longer machinery life

PLC migrationHMIStaged cutover

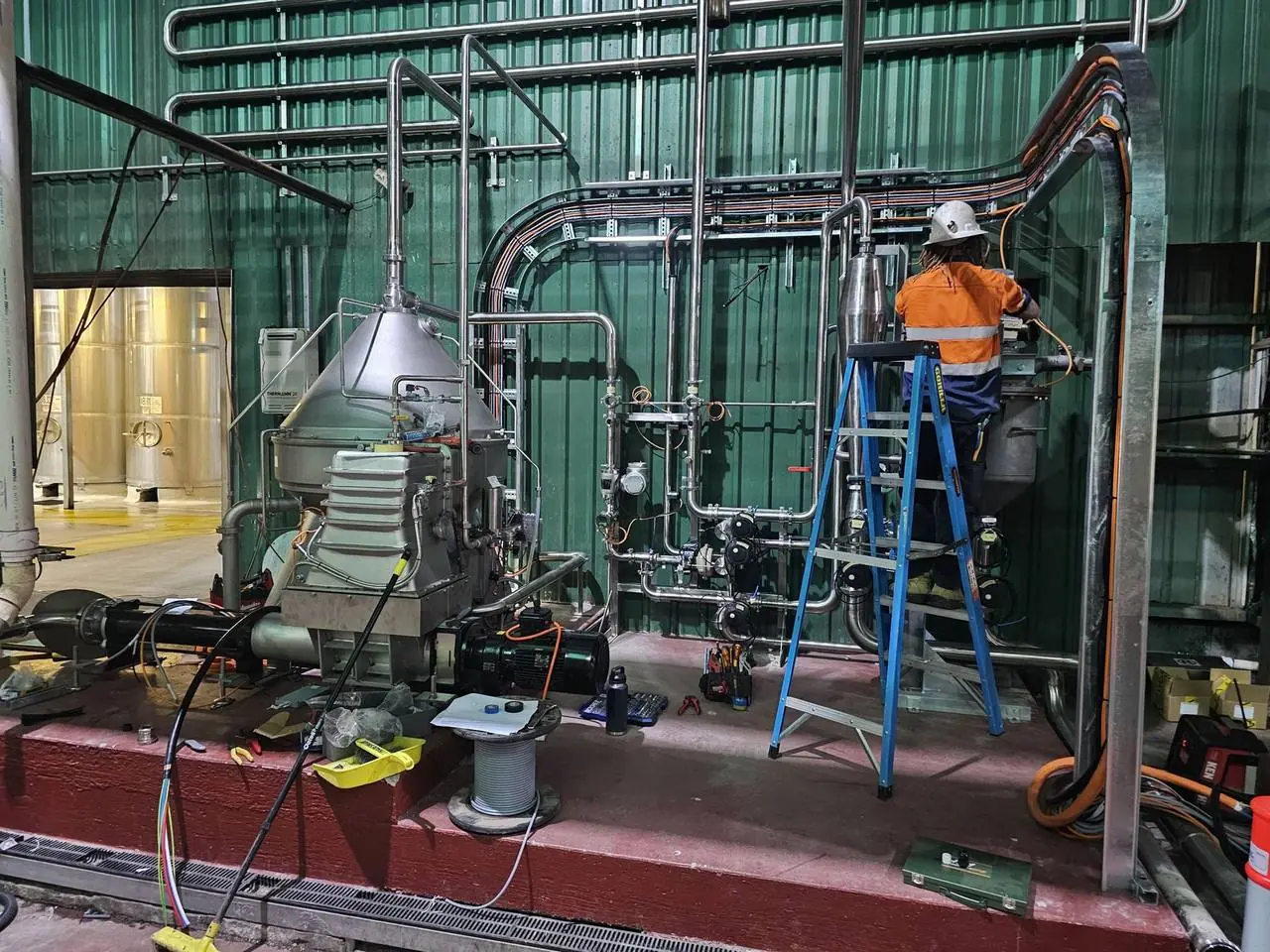

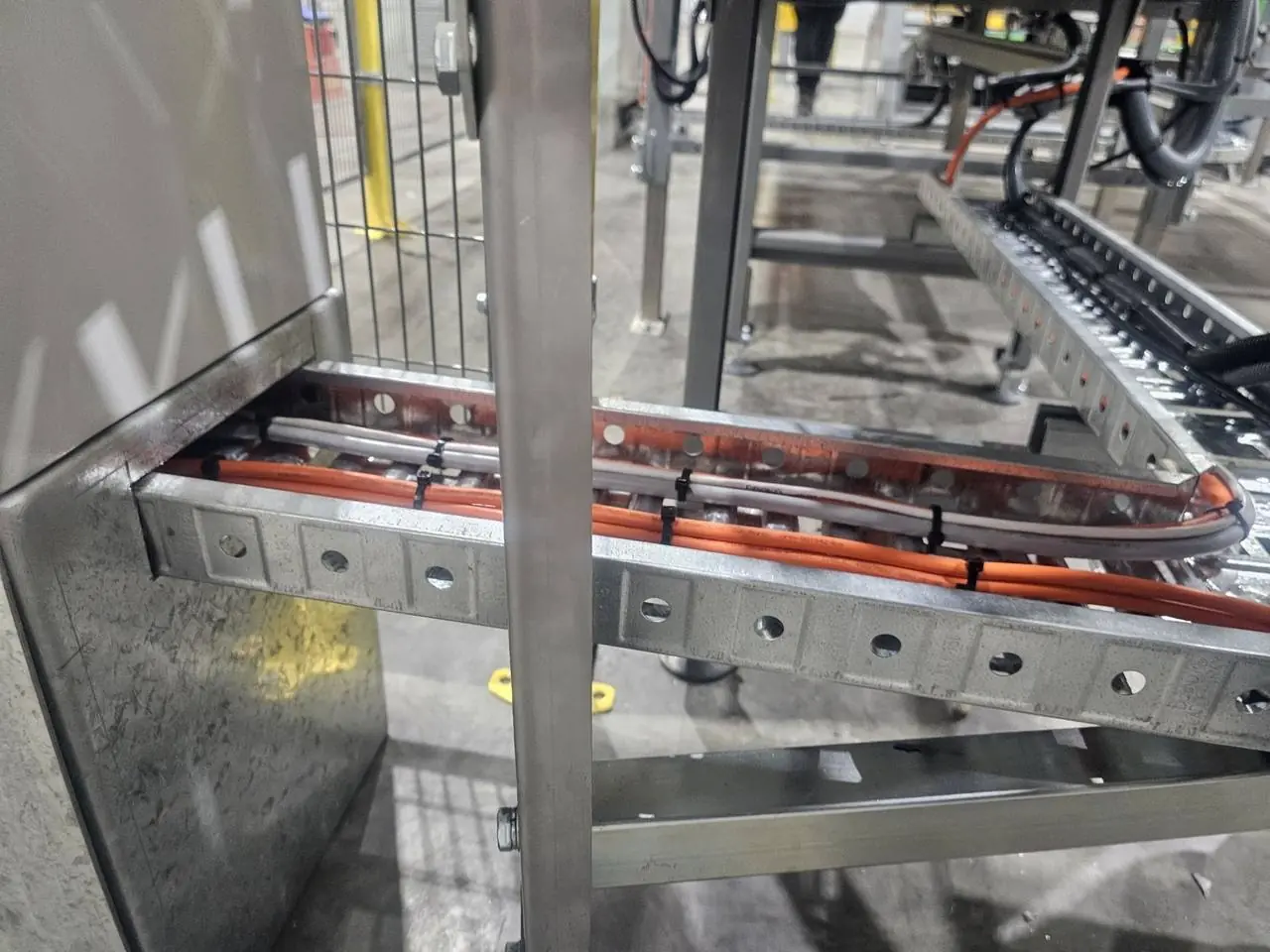

AMC electrician installing cabling at a process plant

Food & beverage · Installation

Process plant electrical installation

LocationRiverina NSW

SectorFood processing

ScopeInstall · terminate · test

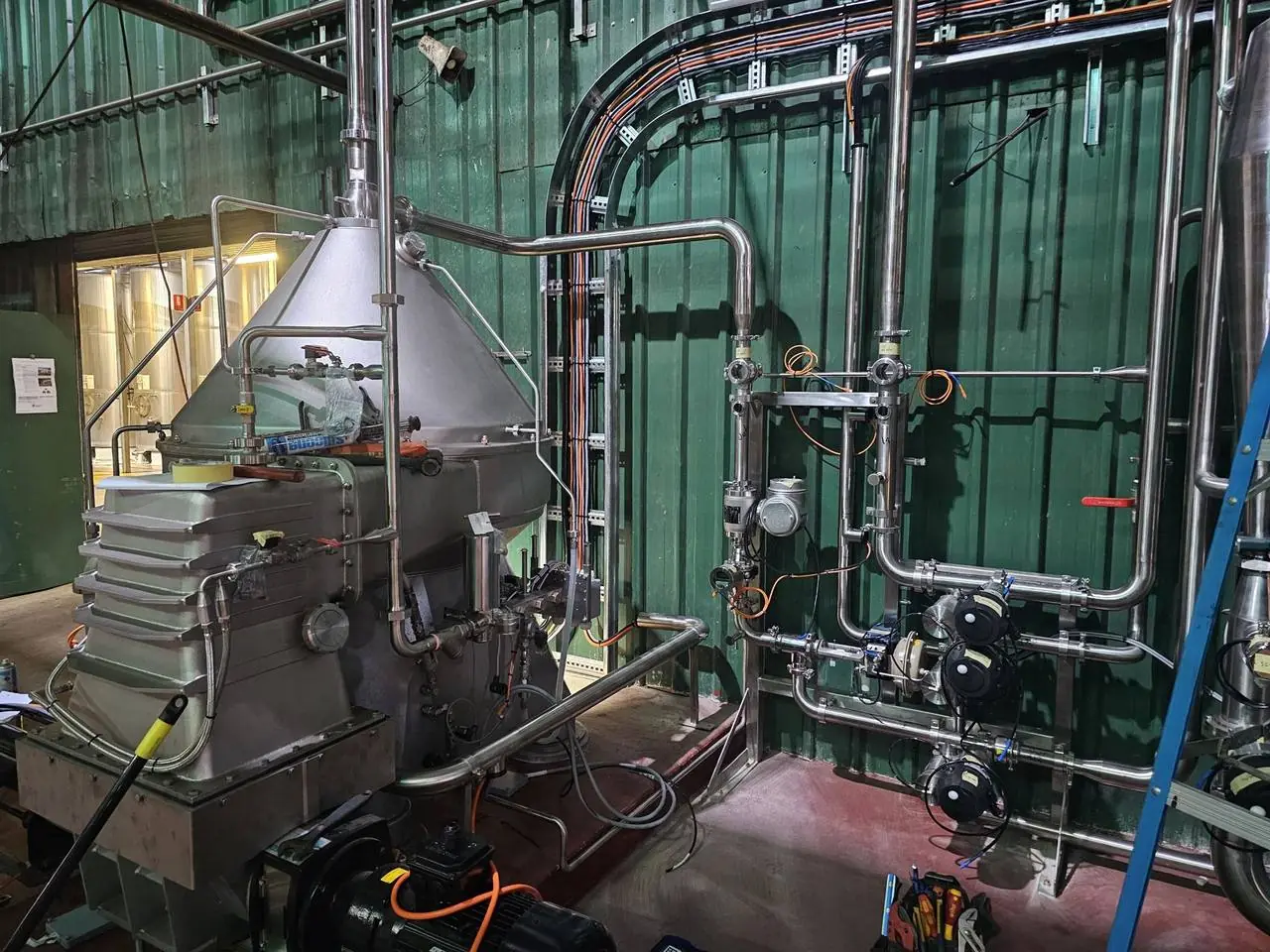

The brief: Install power and control cabling for new process equipment inside an operating food plant.
What we did: AMC's field crew installed cable tray, power and control cabling and terminations for the new process equipment, working around live production.

Outcomes

Neat, compliant cable management
Work planned around production
Tested and documented on completion

InstallationCable trayFood plant
