Switchboard and MCC manufacturing in Griffith, NSW

Main switchboards engineered and verified for grid connection, plus busbar systems, complex MCCs and distribution boards, built in our own workshop.

Large orange main switchboard in the AMC workshop

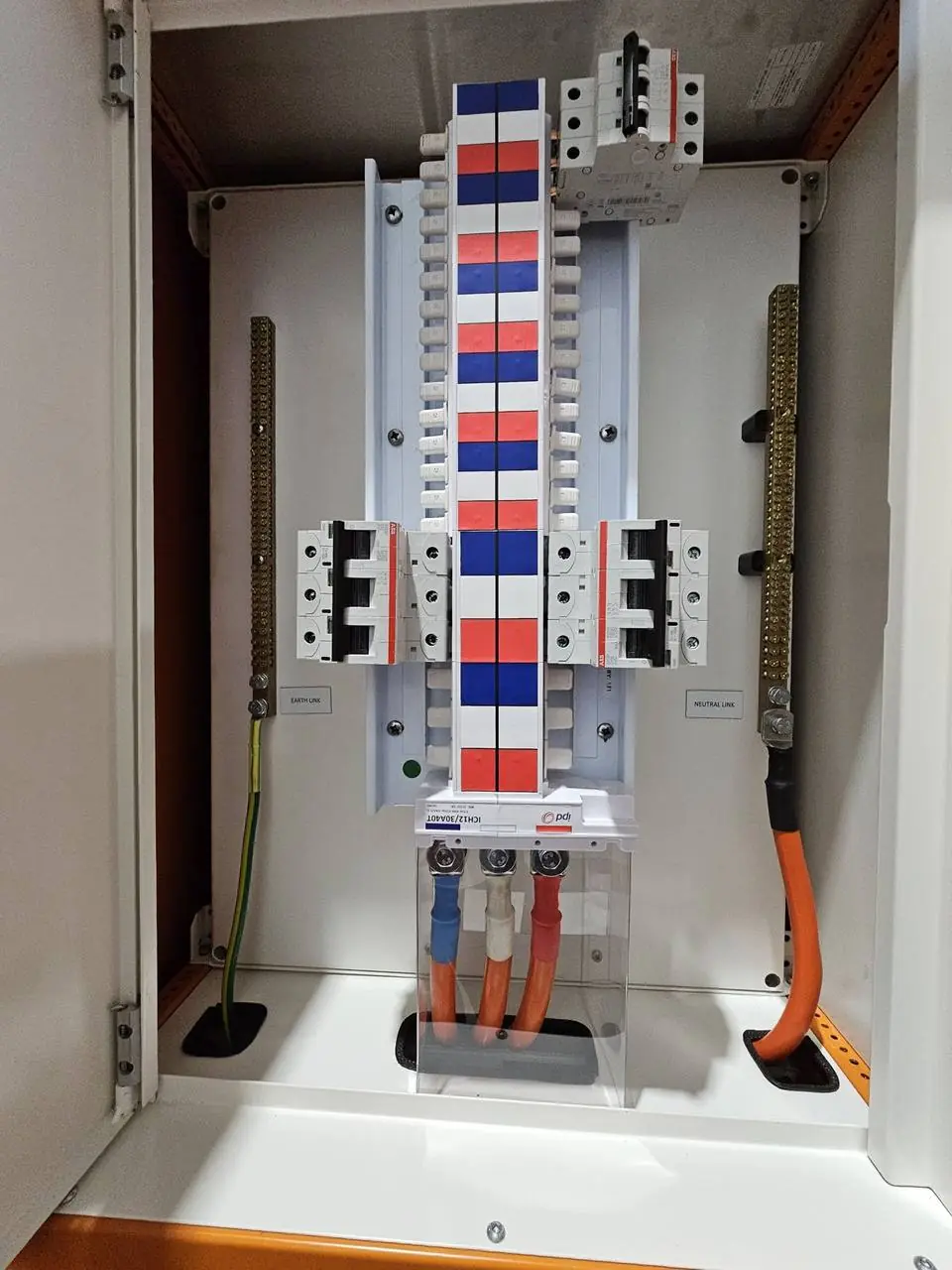

Busbar chamber inside a main switchboard

Anthony walks through a switchboard build in our workshop. Tap to play with sound.

SVC-03 · Switchboards & MCCs

Boards built in Griffith, tested before they leave.

We design and build main switchboards, motor control centres, and process and control boards in our own workshop. Main switchboards are designed to your local network distributor's requirements and the NSW Service and Installation Rules, so they're ready for grid connection. Every board is tested before it ships, then installed and terminated by the same crew, so there's no handover gap between builder and installer.

What we do

Main switchboards and distribution boards
Grid-connection ready, to distributor requirements
Motor control centres (MCCs)
Process and control boards
VSDs, soft starters and smart motor starters
Power factor correction and harmonic filtering
Factory testing before delivery

Standards, platforms & tools

AS/NZS 61439 switchgear assembliesAS/NZS 3000 Wiring RulesNSW Service & Installation RulesDistributor requirementsIn-house fabricationFull test recordsAs-built drawings

Quote this work

Distributor compliance & engineering

Engineered to be ready for grid connection.

We handle the distributor compliance and the engineering behind it, so your main switchboard arrives designed, verified and documented for connection, not sent back for rework.

STAGE 01

Requirements

Your distributor's requirements and the NSW Service and Installation Rules captured before design starts.

STAGE 02

Engineering

Temperature rise calculations, fault current verification and protection selection, to AS/NZS 61439.

STAGE 03

Build

Busbar systems, switchgear and wiring fabricated in our Griffith workshop.

STAGE 04

Test

Every board tested before it ships, with full test records.

STAGE 05

Install

Delivered, installed and terminated by the crew that built it.

STAGE 06

Connect

As-built drawings and compliance documentation, ready for grid connection.

What we build

From distribution boards to complex MCCs.

Every board is designed for where it will live, whether that's a plant room, a paddock or a hot Riverina summer.

Main switchboards designed to distributor requirements for grid connection
Busbar systems engineered and fabricated in-house
Complex motor control centres with VSDs, soft starters and smart motor starters
Distribution boards for plants, sheds and commercial sites
Outdoor, weather-rated boards for exposed sites
Indoor-rated boards for plant rooms and switch rooms
Air-conditioned enclosures for drives and control gear in high temperatures

Full turnkey

Boards and controls from one team.

Our MCCs can be coupled with our advanced PLC control systems, so the power, the drives and the automation are designed, built, programmed and commissioned together as one turnkey project.

PLC automation & controls Quote a board

Where we work

Griffith-based, across the Riverina.

Boards are built in our Griffith workshop and delivered and installed across the Riverina, from Leeton and Narrandera to Hay, Wagga Wagga and Mildura.

GriffithLeetonYendaHanwoodYoogaliNarranderaDarlington PointColeamballyHayHillstonWagga WaggaMildura

Related work

See it on the job.

Custom main switchboard 1000 A main distribution board Citrus packing conveyor controls

FAQs

Common questions

Can you build a main switchboard for a new grid connection?

Yes. Our main switchboards are designed to your local network distributor's requirements and the NSW Service and Installation Rules, so they're ready for connection.

Do you do the temperature rise and fault current calculations?

Yes. We carry out the temperature rise calculations and fault current verification for each assembly as part of our AS/NZS 61439 design, along with the distributor compliance documentation.

Can you build boards for outdoor or hot locations?

Yes. We build outdoor weather-rated boards, indoor-rated boards, and air-conditioned enclosures for drives and control gear in high-temperature locations.

What standard are your switchboards built to?

Switchgear assemblies are built to AS/NZS 61439 and wired to AS/NZS 3000, with full test records and as-built drawings supplied.

Are boards tested before delivery?

Every board is tested in our workshop before it ships, so problems are found on the bench, not on site.

Do you install the boards you build?

Yes. The same crew that builds the board installs and terminates it, so there's no handover gap between the builder and the installer.
